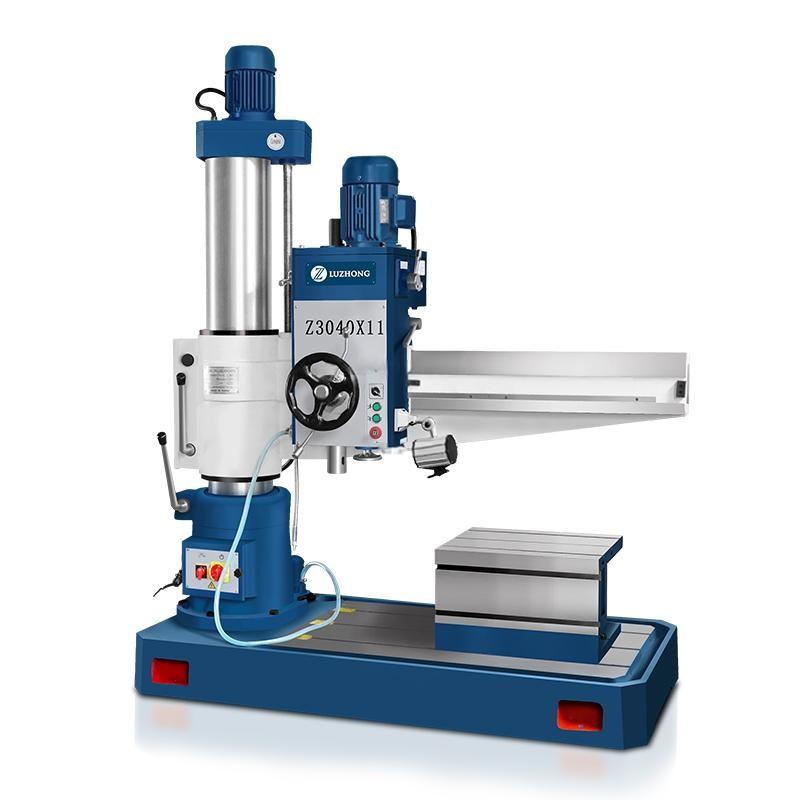

Z3040X10 Radial Drilling Machine
MACHINE description
|
Specifications |
Z3040×10 |
|
Max.drilling diameter(mm) |
40 |
|
Distance between spindle axis and column(mm) |
1000~360 |
|
Distance spindle nose and working surfaceof base plate(mm) |
1200~260 |
|
Spindle travel(mm) |
200 |
|
Spindle speed stage |
6(75-1220) |
|
Spindle feed rate 3 N |
0.10、0.16、0.22 |
|
Overall dimension(mm) |
1500×705×2300 |
|
Spindle motor power(KW) |
2.2 |
|
N/W(Kg) |
1500 |
