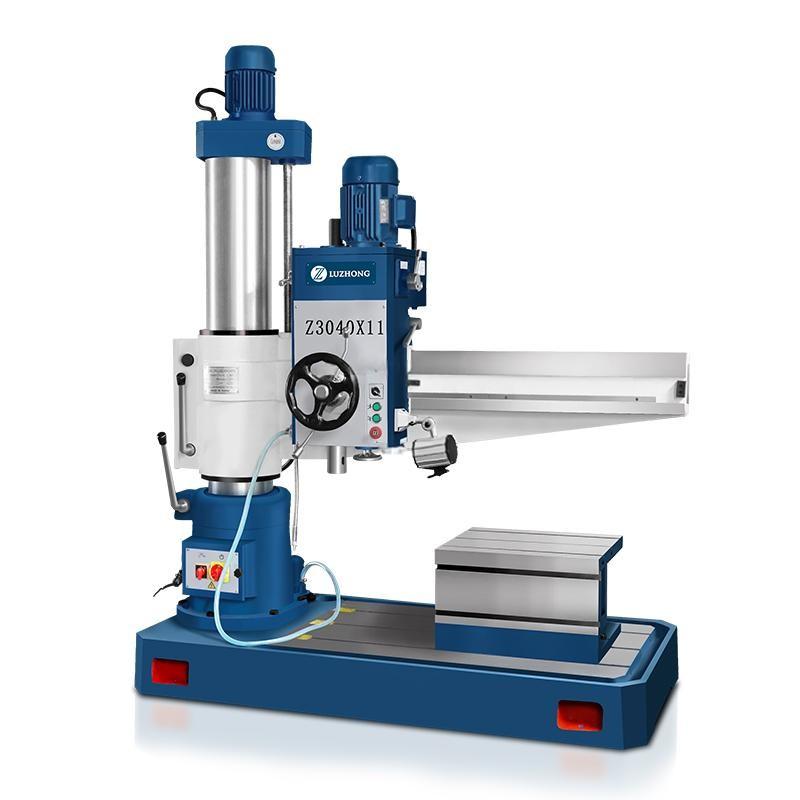

Z3040X13 Radial Drilling Machine
MACHINE description
|
Specifications |
Z3040×13 |
|
Max.drilling diameter(mm) |
40 |
|
Distancefromspindlenoseto table surface(mm) |
360~1300 |
|
Distancefromspindleaxis to column surface(mm) |
260~1200 |
|
Spindle travel(mm) |
200 |
|
Spindle taper |
MT4 |
|
Spindle speedrange (rpm) |
75-1220 |
|
Spindlespeed steps |
6 |
|
Spindle feed range (mm/r) |
0.10/0.16/0.22 |
|
Spindle feed steps |
3 |
|
Main motor power (kw) |
2.2 |
|
Overall dimension(mm) |
1800×750×2300 |
|
N/W(Kg) |
1700 |
