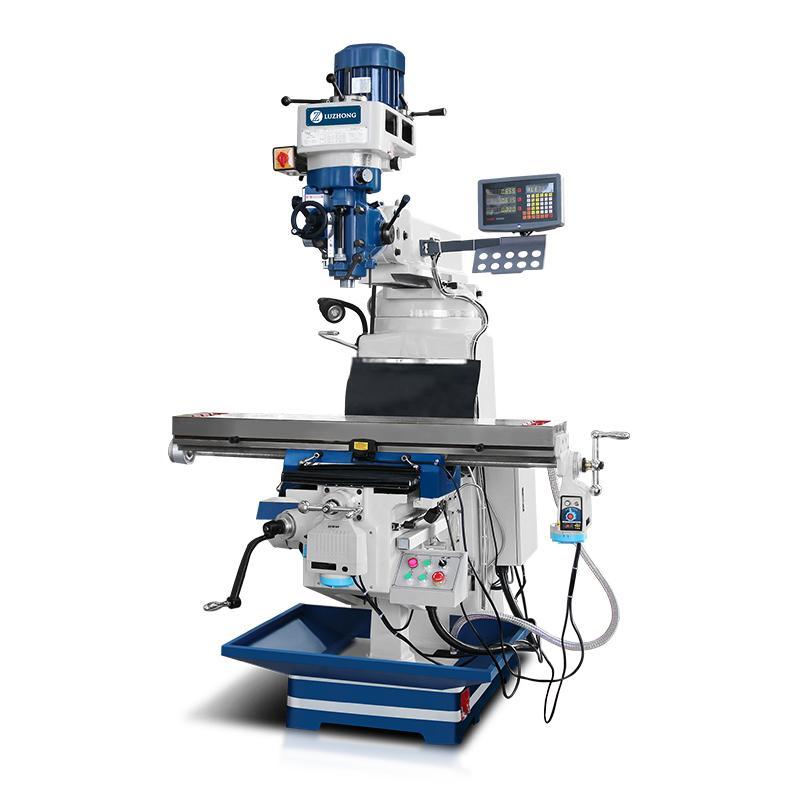

4H Turret Milling Machine
MACHINE description
|
Specifications |
Units |
4H |
|
Table size |
mm |
1270x254(10”x50”) |
|
Tabletravel |
mm |
780/400/420 |
|
T slot(number-width-pitch) |
mm |
3-16-50 |
|
Spindle taper |
standard:R8 optional:ISO40 |
|
|
Spindle speed range |
rpm |
standard:16 steps, 50HZ:65-4500,60HZ:80-5440 Optional:variable65-4000 |
|
Spindle travel |
mm |
127 |
|
Spindle feed range |
mm |
0.04,0.08,0.15(3 steps) |
|
Distance between spindle nose and tablesurface |
mm |
90-510 |
|
Mainmotor power |
kw |
2.2 |
|
Head rotation (left - right ) |
° |
±90° |
|
Head rotation (front - rear) |
° |
±45° |
|
Weight |
kg |
1400 |
|
Overall dimension |
mm |
1550x1650x2250 |
