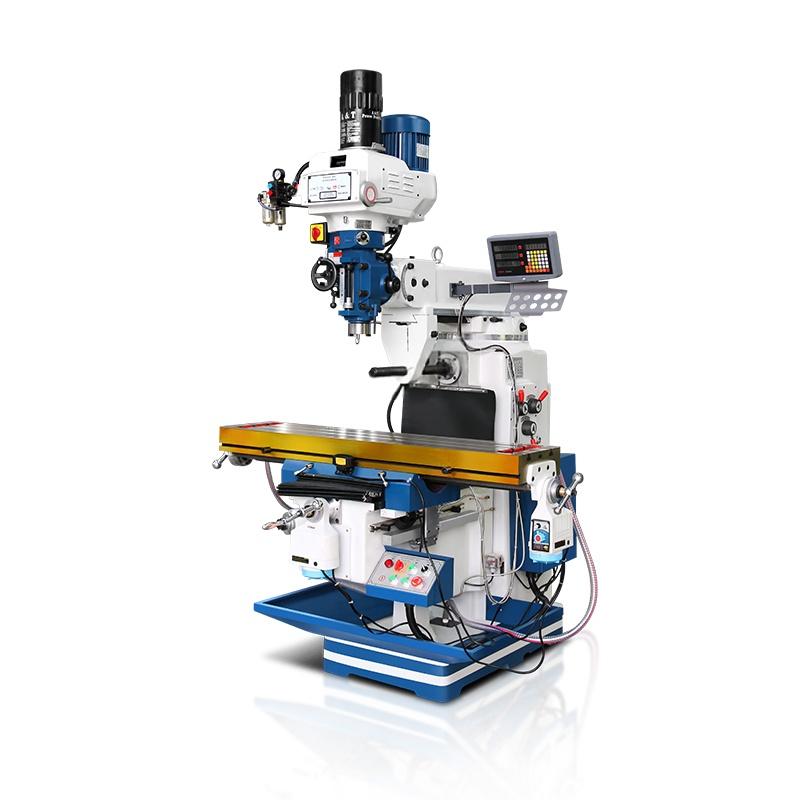

4HW Turret Milling Machine
MACHINE description
|
Specifications |
Units |
4HW |
|
Table size |
mm |
1270x254 |
|
Tabletravel |
mm |
780/380/400 |
|
T slot(number-width-pitch) |
mm |
3-16-65 |
|
Spindle taper |
(V)R8/ISO40 (H)ISO40 |
|
|
Spindle speed range |
rpm |
(V)50HZ:65-4500 60HZ:80-5440,16 steps; (H)45-1350,12steps Optional:variable 65-4000 |
|
Spindle travel |
mm |
127 |
|
Spindle feed range |
mm |
0.04,0.08,0.15 (3 steps) |
|
Distance between spindleaxisand table surface |
mm |
0-400 |
|
Mainmotor power |
kw |
2.2(V)3(H) |
|
Head rotation (left - right ) |
° |
±90° |
|
Head rotation (front - rear) |
° |
±45° |
|
Weight |
kg |
1750 |
|
Overall dimension |
mm |
1550x1650x2250 |
