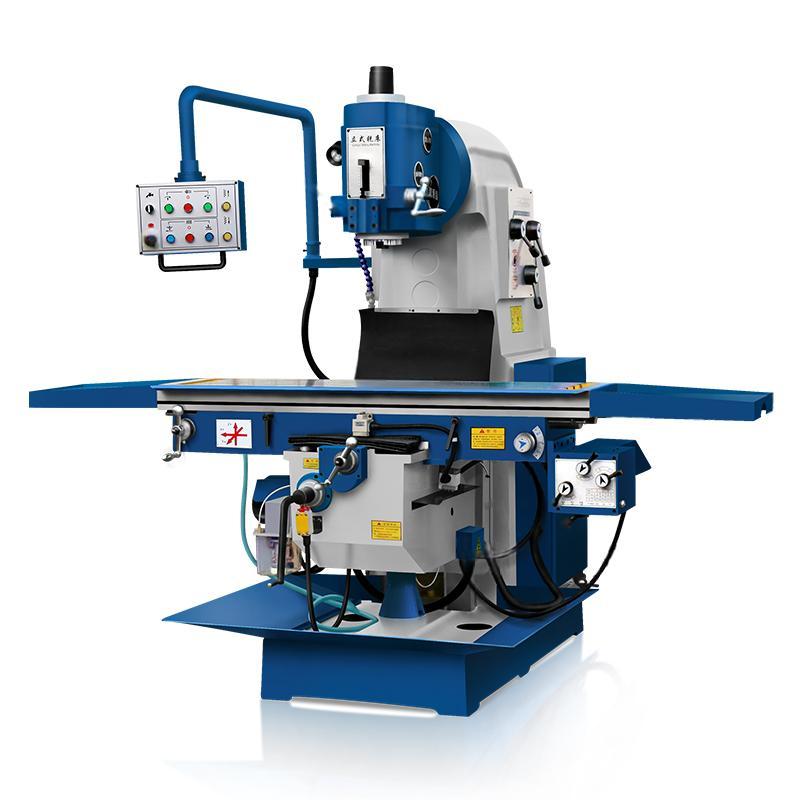

X5036K Vertical Milling Machine

Specifications	Units	X5036K
Table size	mm	1500×360
Table travel	mm	1000/320/450
T slot(number-width-pitch)	mm	3-18-80
Spindle taper	-	ISO50 7:24
Spindle speed range	rpm	60-1800(12steps)
Distance between spindle nose and table surface	mm	60-540
Distancebetweenspindleaxisto column surface	mm	360
Mainmotor power	kw	5.5
Weight	kg	3300
Overall dimension	mm	2700×2300×2400

CHARACTERISTICS

The use of the moment type of rail steel is good, strong stability
High frequency quenching of working table and guide surface
Working table Y, X are both gear drive automatic feed, Z for electric lift
X5036B – type slider (1200mm) to make the work of the working table longer, better stability
B type milling head with automatic feed device can be customized according to user requirements of the X direction of the work table 1300mm
