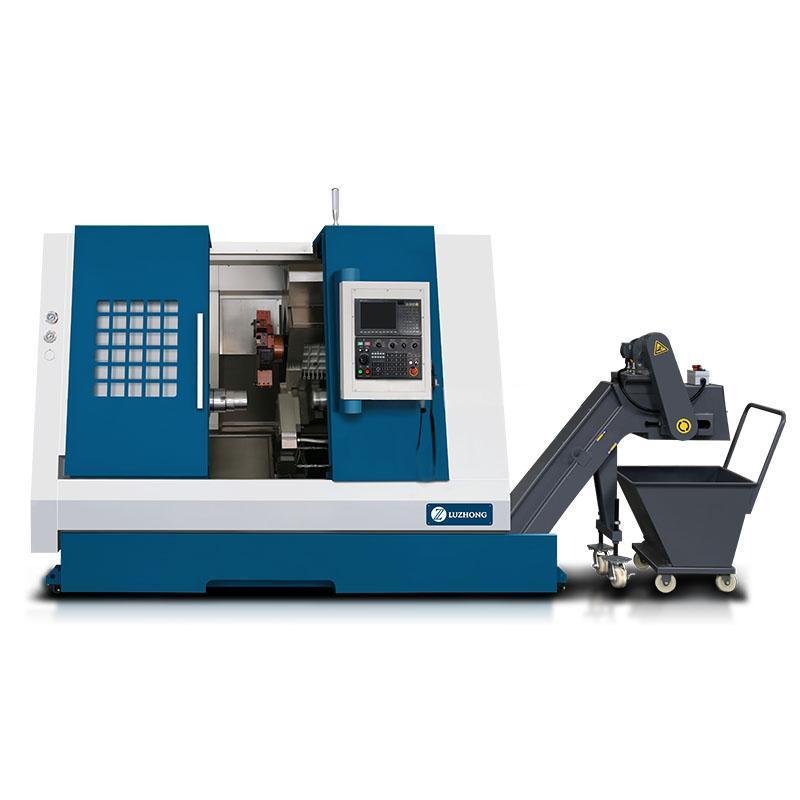

TCK600SY Slant Bed CNC Lathe Machine
MACHINE description
|
SPECIFICATIONS |
Units |
TCK600SY/500 |
TCK600SY/1000 |
|
Swing over bed |
mm |
600 |
600 |
|
Max. workpiece length |
mm |
500 |
1000 |
|
Max. cutting diameter |
mm |
460 |
460 |
|
Spindle type |
/ |
Electrical spindle |
Electrical spindle |
|
Spindle nose type |
/ |
A2-6 |
A2-6 |
|
Spindle bore |
mm |
65 |
65 |
|
Spindle speed |
rpm |
4500 |
4500 |
|
Spindle motor power |
kw |
30 |
30 |
|
Spindle type |
/ |
Electrical spindle |
Electrical spindle |
|
Spindle nose type |
/ |
A2-5 |
A2-5 |
|
Spindle hole diameter |
mm |
56 |
56 |
|
Spindle speed |
rpm |
4500 |
4500 |
|
Main motor power |
kw |
11 |
11 |
|
The distance from the end face of the first spindle chuck to the end face of the second spindle chuck |
mm |
50-600 |
50-1000 |
|
X axis travel |
mm |
280 |
280 |
|
Y axis travel |
mm |
±50 |
±50 |
|
Z axis travel |
mm |
550 |
1000 |
|
C axis travel |
° |
360° |
360° |
|
X/Y/Z axis rapid traverse |
m/min. |
30/30/10 |
30/30/10 |
|
Tool holder type |
/ |
12 position live turret |
12 position live turret |
|
Tool holder specifications |
/ |
BMT55-ER32 |
BMT55-ER32 |
|
Machine weight |
kgs |
5500 |
7000 |
