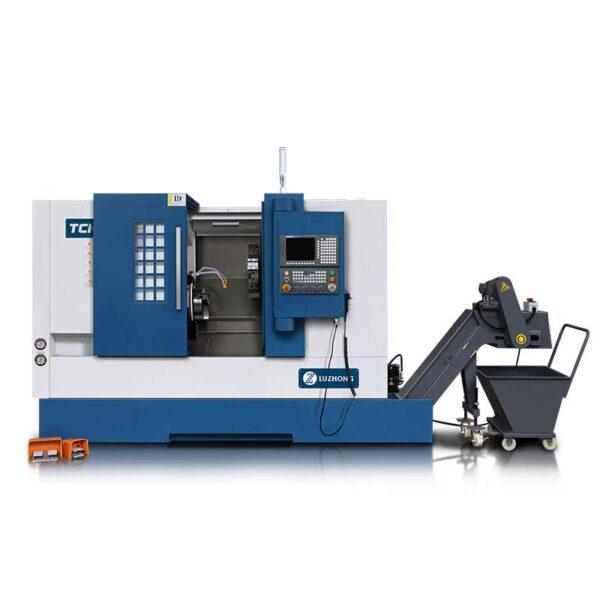

TCK56 Slant Bed CNC Lathe Machine

SPECIFICATIONS

Units

TCK56

Swing over bed

mm

560

Max. workpiece length

mm

500 /1000

Max. cutting diameter

mm

350

Spindle bore

mm

65

Spindle nose type

-

A2-6（Opt.A2-8）

Spindle speed steps

-

Stepless

Spindle speed range

rpm

50-4500

Chuck

-

8'' Hollow hydraulic chuck

Turret/tool post

-

Servo turret 8 position

X axis travel

mm

200

Z axis travel

mm

550/1050

X axis rapid traverse

m/min

30

Z axis rapid traverse

m/min

30

Main motor power

kw

11/15

Tailstock quill taper

-

MT4（Opt.MT5）

Tailstock base travel

mm

400/900

Guide rail type

-

45°Slant bed linear rail

Machine weight

kg

3700/4500
