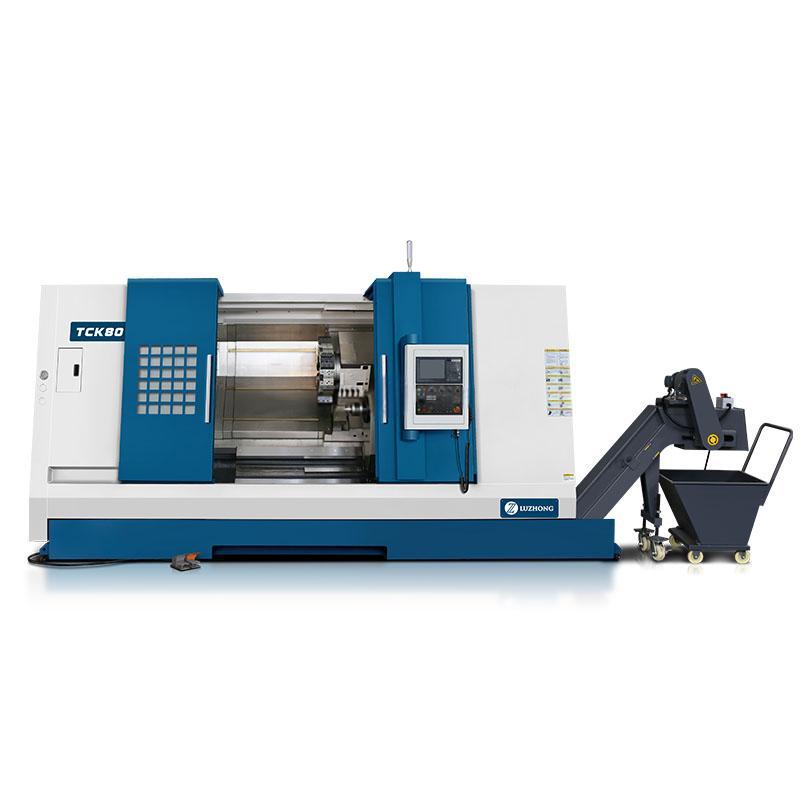

TCK80 Slant Bed CNC Lathe Machine

SPECIFICATIONS

Units

TCK80

Swing over bed

mm

800

Max. workpiece length

mm

1000/1500/2000/3000

Max. cutting diameter

mm

600

Spindle bore

mm

80

Spindle nose type

-

A2-11

Spindle speed steps

-

Stepless

Spindle speed range

rpm

50-3500

Chuck

-

12'' Hollow hydraulic chuck

Turret/tool post

-

Servo turret 12 position

X axis travel

mm

250

Z axis travel

mm

1020/1520/2050/3050

X axis rapid traverse

m/min

12

Z axis rapid traverse

m/min

16

Main motor power

kw

18.5/22

Tailstock quill taper

-

MT6

Tailstock base travel

mm

900/1400/1950/2950

Guide rail type

-

45°Slant bed linear rail

Machine weight

kg

6000/7000/8000/10000
