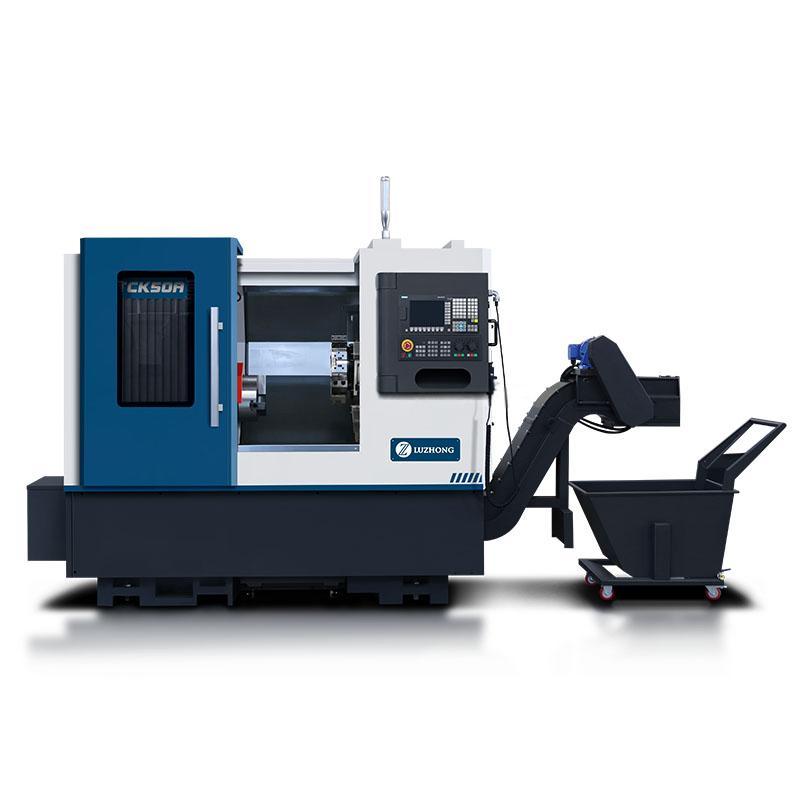

TCK50A Slant Bed CNC Lathe Machine

SPECIFICATIONS

Units

TCK50A

Swing over bed

mm

500

Swing over cross slide

mm

250

Max. workpiece length

mm

350/500

Spindle bore

mm

66

Bar capacity

mm

55

Spindle nose type

-

A2-6

Spindle speed steps

-

Stepless

Spindle speed range

rpm

3000

Turret/tool post

-

Hydraulic turret 8position

Tool size

mm

25*25

X axis travel

mm

240

Z axis travel

mm

350/500

X axis rapid traverse

mm/min

18000

Z axis rapid traverse

mm/min

18000

Main motor power

kw

11

Tailstock quill diameter

mm

70

Tailstock quill taper

-

MT5

Tailstock quill travel

mm

80

Guide rail type

-

Slant bed linear rail

Machine weight

kg

3100/3300

Overall dimension(L*W*H)

mm

2600/2700*2000*2000
