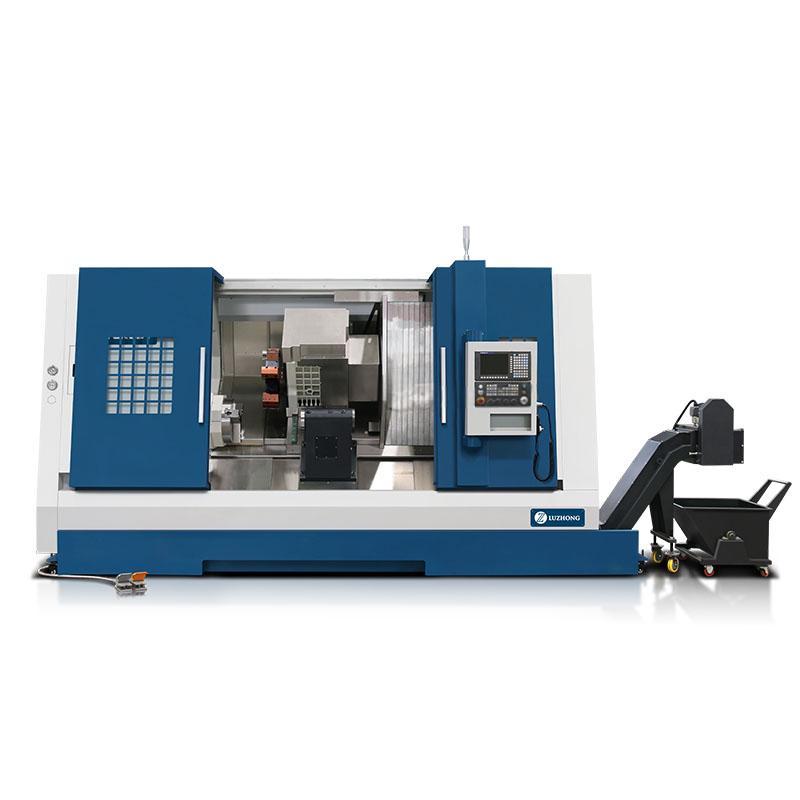

TCK80Y Slant Bed CNC Lathe Machine
MACHINE description
|
SPECIFICATIONS |
Units |
TCK80Y |
|
Swing over bed |
mm |
800 |
|
Max. workpiece length |
mm |
1000/1500/2000/3000 |
|
Max. cutting diameter |
mm |
600 |
|
Spindle bore |
mm |
80 |
|
Spindle nose type |
- |
A2-11（A2-8) |
|
Spindle speed steps |
- |
Stepless |
|
Spindle speed range |
rpm |
2000（3000) |
|
Chuck |
- |
12'' Hollow hydraulic chuck |
|
X axis travel |
mm |
350 |
|
Y axis travel |
mm |
±50 |
|
Z axis travel |
mm |
900/1400/1900/2900 |
|
X axis rapid traverse |
m/min |
12 |
|
Y axis rapid traverse |
m/min |
12 |
|
Z axis rapid traverse |
mm/min |
16 |
|
Main motor power |
kw |
18.5（Opt.37） |
|
Turret type |
12 Station power turret |
|
|
Turret Model |
BMT65-ER32 |
|
|
Tailstock quill taper |
- |
MT6 |
|
Tailstock base travel |
mm |
900/1400/1900/2900 |
|
Guide rail type |
- |
Slant bed linear rail/Hard guideway |
|
Machine weight |
kg |
7000/8000/9000/11000 |
