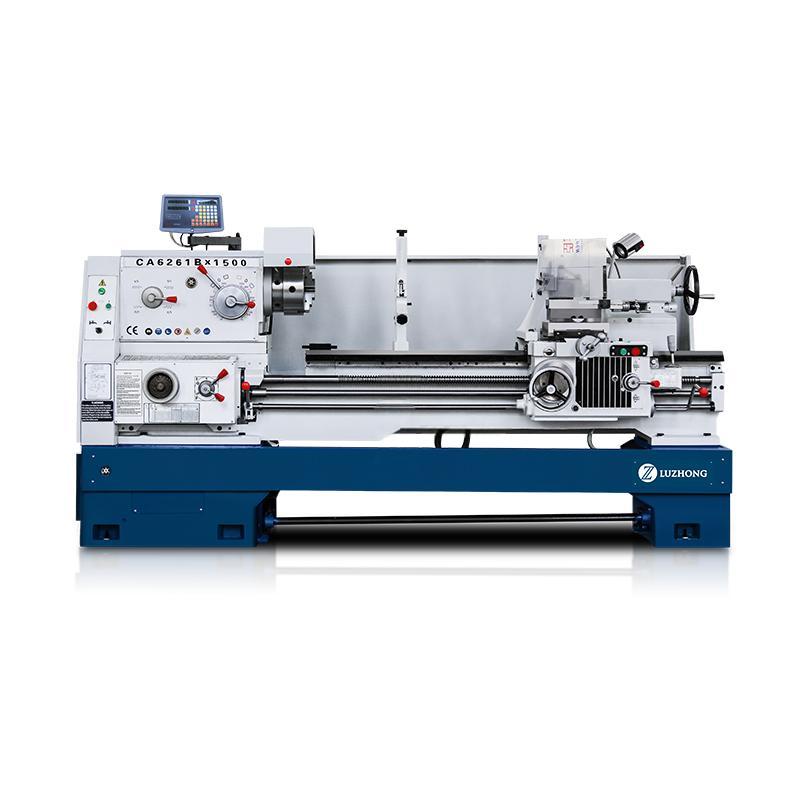

CA6161 CA6261 Lathe Machine

SPECIFICATIONS	Units	CA6161 CA6161B CA6161C	CA6261 CA6261B CA6261C
Swing over bed	mm	610
Swing over cross slide	mm	370
Swing over gap	mm	-	830
Gap length	mm	-	210
Distance between centers	mm	750/1000/1500/2000/2200/3000/4000
Spindle bore	mm	52 B:80 C:105
Spindle bore taper	-	MT6 B:90 1:20 C:113 1:20
Spindle speed range	rpm	10-1400/16-1400
Spindle speed steps	-	24
Cross slide travel	mm	320
Top tool post travel		140
Tool size		25*25
Longitudinal feeds kinds	kinds	64
Longitudinal feeds range	mm/r	0.028-6.33
Cross feeds range kinds	kinds	64
Cross feeds range	mm/r	0.014-3.16
Longitudinal fast moving	m/min	4
Cross fast moving	m/min	2
Kinds of metric threads	kinds	44
Range of metric threads	mm	1-192
Kinds of inch threads	kinds	21
Range of inch threads	T.P.I.	2-24
Kinds of module threads	kinds	39
Range of module threads	M.P.	0.25-48
Kinds of diametral threads hreads	kinds	37
Range of diametral threads hreads	D.P.	1-96
Tailstock quill diameter	mm	75
Tailstock quill taper	-	MT5
Tailstock quill travel	mm	150
Main motor power	kw	7.5
Coolant motor power	kw	0.09
Weight for 750	kg	2200
Weight for 1000	kg	2300
Weight for 1500	kg	2500
Weight for 2000	kg	2800
Weight for 3000	kg	3700
Weight for 4000	kg	4200
Dimension for 750	mm	244011501800
Dimension for 1000	mm	265011501800
Dimension for 1500	mm	315011501800
Dimension for 2000	mm	365011501800
Dimension for 3000	mm	480011501800
Dimension for 4000	mm	568011501800

CA series of ordinary horizontal lathe is suitable for turning inside and outside cylindrical surface,conical surface and other rotating surface,turning various metric and inch, modulus and pitch thread,and can carry out the work of drilling and pulling oil groove,is a very versatile horizontal lathe,widely used in all kinds of shaft and disc parts of the batch processing.
This series of lathe bed width in general lathe, rail width 400mm has a high stiffness; guide rail surface is quenched by medium frequency, and is durable.
The machine operation is flexible and concentrated,the apron with fast moving mechanism.Using single handle vivid of the operation, pleasant and good.。
Machine tool structure rigidity and transmission rigidity are higher than the general lathe, the power utilization ratio is high, is suitable for the strong cutting.
Machine tool factory in strict accordance with the test procedures for testing, and make a strong cutting test, to ensure that the machine has a good accuracy and reliability.

CHARACTERISTICS

Machine tool bed box, headstock and tailstock, palletetc. the binding surface between the manual scraping machine, after rigorous testing, the precision and stability of the effective guarantee machine.
The machine adopts high strength cast iron, copper and chromium added special materials, bed width 400mm, bed rail quenching depth 4mm, effectively improve the wear resistance and stability of machine tool.
Machine tool bed box lubricated system by the use of the lubrication of the pump for lubrication, for the hot weather, to ensure the cleanliness of the bed box and heat dissipation characteristics, effectively extend the bearing and gear life.
Machine tool spindle using Wafangdian bearing, spindle hole diameter 52mm, the precision grinding machine tool gear, effectively improve the hardness, reduce machine noise.
Machine tool uses the domestic brand screw, wire mother uses the high quality bronze alloy to guarantee the wear resistance and the accuracy retention.
Machine tool with four position high strength tool, shank size: 25x25mm.
