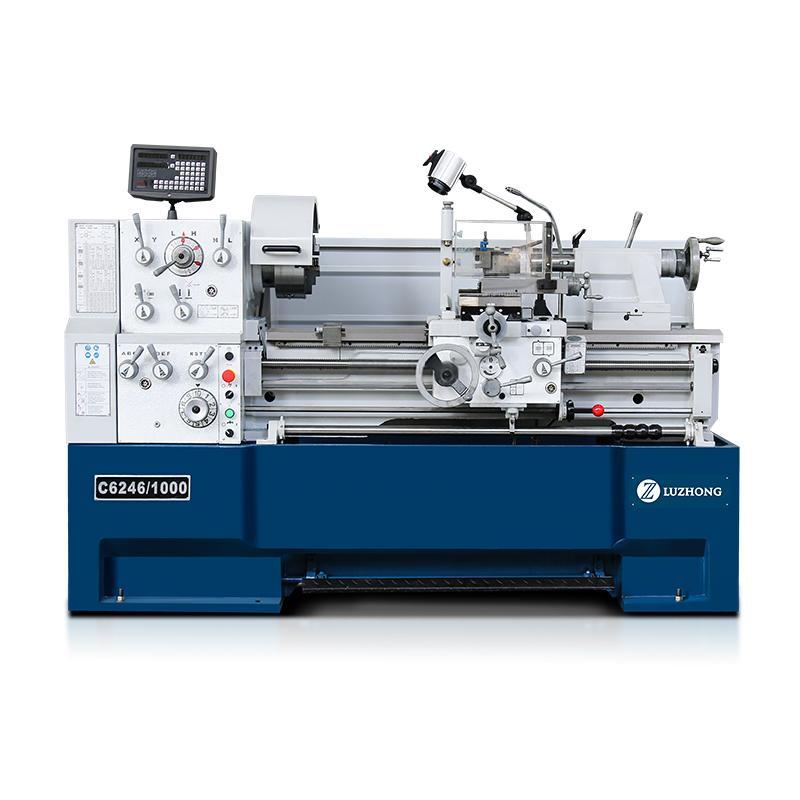

C6246 Lathe Machine

Specification

C6246×1000

C6246×1500

C6246×2000

Swing over bed

460mm(18")

Swing over cross slide

270mm(10-3/4")

Swing in gap diameter

690mm(27-1/8")

Distance between centers

1000mm(40")

1500mm(60")

2000mm(80")

Valid length of gap

165mm(6-1/2")

Width of bed

300mm(11-13/16")

Spindle nose

D1-6

Spindle bore

58mm(2-1/4")

Taper of spindle bore

No.6 Morse

Range of spindle speed

12 changes, 25～2000r/min

Compound rest travel

128mm(5")

Cross slide travel

285mm(11-1/4")

Max.section of tool

25×25mm(1"×1")

Lead screw thread

6mm or 4T.P.I.

Longitudinal feeds range

42 kinds, 0.031～1.7mm/rev(0.0011"～0.0633"/rev)

Cross feeds range

42 kinds, 0.014～0.784mm/rev(0.00033"～0.01837"/rev)

Threads metric pitches

41 kinds, 0.1～14mm

Threads imperial pitches

60 kinds, 2～112T.P.I.

Threads diametral pitches

50 kinds, 4～112DP

Threads module pitches

34 kinds, 0.1～7MP

Quill diameter

60mm(2-5/16")

Quill travel

130mm(5")

Quill taper

No.4 Morse

Main motor power

5.5kW(7.5HP) 3PH

Coolant pump power

0.1kW(1/8HP) 3PH

Overall dimension(L×W×H)

220×108×137cm

275×108×137cm

325×108×137cm

Packing size(L×W×H)

225×112×162cm

280×112×156cm

330×113×156cm

Net weight

1645kg

1810kg

1965kg

Gross weight

1910kg

2115kg

2295kg
