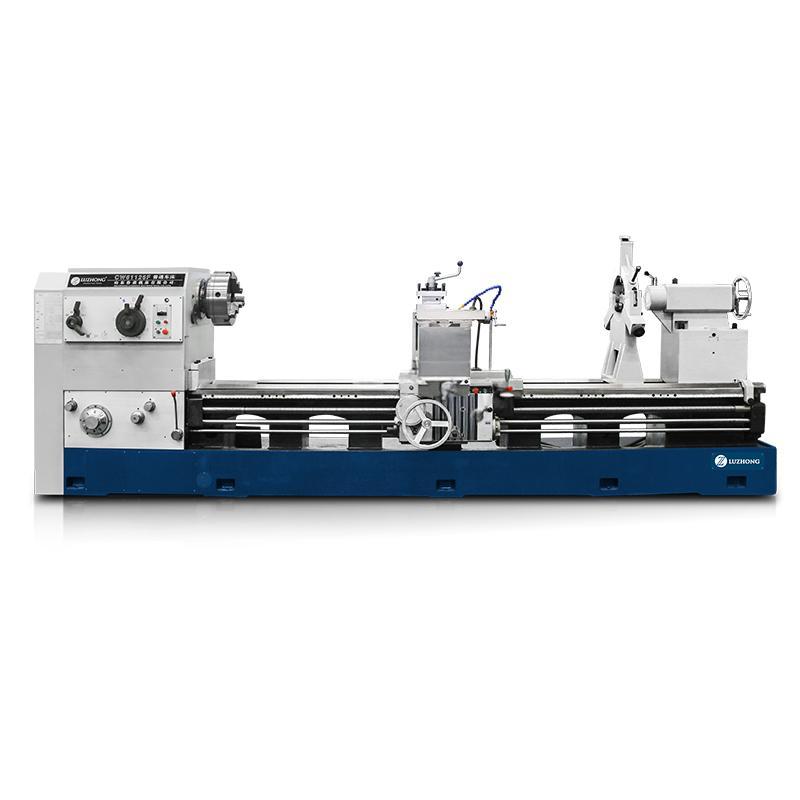

CW61100L Heavy Duty Lathe Machine

Specification

Unit

CW61100L

Swing over bed

mm

1000

Swing over cross slide

mm

610

Distance between centers

mm

1500/2000/3000/4000/5000/6000

Guideway width

mm

755

Max. load capacity

T

6

Spindle bore

mm

130

Spindle bore taper

-

Metric φ140/MT6

Spindle nose type

-

A2-15

Spindle speed steps

-

FWD. 21 steps

Spindle speed range

rpm

3.15-315

Chuck

mm

φ1000 4-jaw manual

Turret/tool post

-

Manual turret 4 position

Tool shank size

mm

45 x 45

X axis travel

mm

520

Z axis travel

mm

1350/1850/2850/3850/4850/5850

X axis feed grade/range

mm/r

56/0.05-6

Z axis feed grade/range

mm/r

56/0.1-12

X axis rapid traverse

mm/min

1870

Z axis rapid traverse

mm/min

3740

Metric thread grade/range

mm

44/1-120

Inch thread grade/range

T.P.I

31/28-3/8

Module thread grade/range

mm

45/0.5-60

DP thread grade/range

D.P.

30/56-1

Tailstock quill diameter

mm

φ160

Tailstock quill taper

-

MT6

Tailstock quill travel

mm

300

Main spindle motor

kW

22

Rapid traverse motor

kW

1.5

Coolant pump motor

kW

0.125

Width x Height

mm

2000 x 1800

Length

mm

4600/5100/6100/7100/8100/9100

Net weight

T

9.6/10.1/10.7/11.7/12.7/13.7
