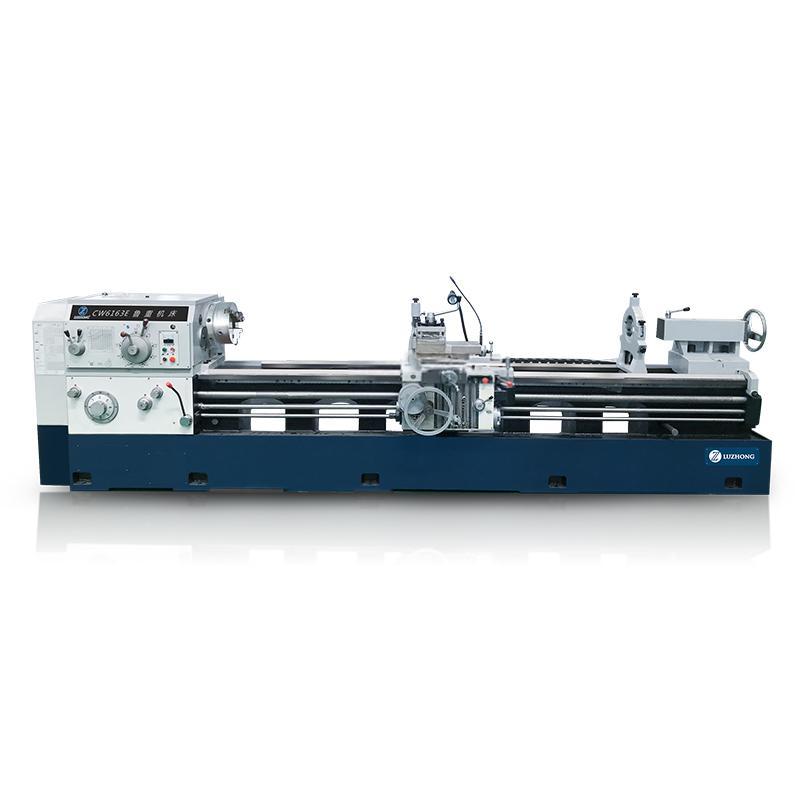

CW6180E CW6280E Heavy Duty Lathe Machine

Specification

Unit

CW6180E/CW6280E

Swing over bed

mm

800

Swing over gap

mm

-

1000

Swing over cross slide

mm

520

Distance between centers

mm

1500/2000/3000/4000/5000/6000

Guideway width

mm

550

Max. load capacity

T

3

Spindle bore

mm

104

Spindle bore taper

-

Metric φ120/MT5

Spindle nose type

-

C11

Spindle speed steps

-

FWD. 18 steps

Spindle speed range

rpm

6-800

Chuck

mm

φ315 3-jaw manual

Turret/tool post

-

Manual turret 4 position

Tool shank size

mm

32 x 32

X axis travel

mm

420

Z axis travel

mm

1350/1850/2850/3850/4850/5850

X axis feed grade/range

mm/r

64/0.05-12.15

Z axis feed grade/range

mm/r

64/0.1-24.3

X axis rapid traverse

mm/min

2300

Z axis rapid traverse

mm/min

4000

Metric thread grade/range

mm

50/1-240

Inch thread grade/range

T.P.I

26/14-1

Module thread grade/range

mm

53/0.5-120

DP thread grade/range

D.P.

24/28-1

Tailstock quill diameter

mm

φ100

Tailstock quill taper

-

MT5

Tailstock quill travel

mm

250

Main spindle motor

kW

11

Rapid traverse motor

kW

1.1

Coolant pump motor

kW

0.125

Width x Height

mm

1500 x 1450
