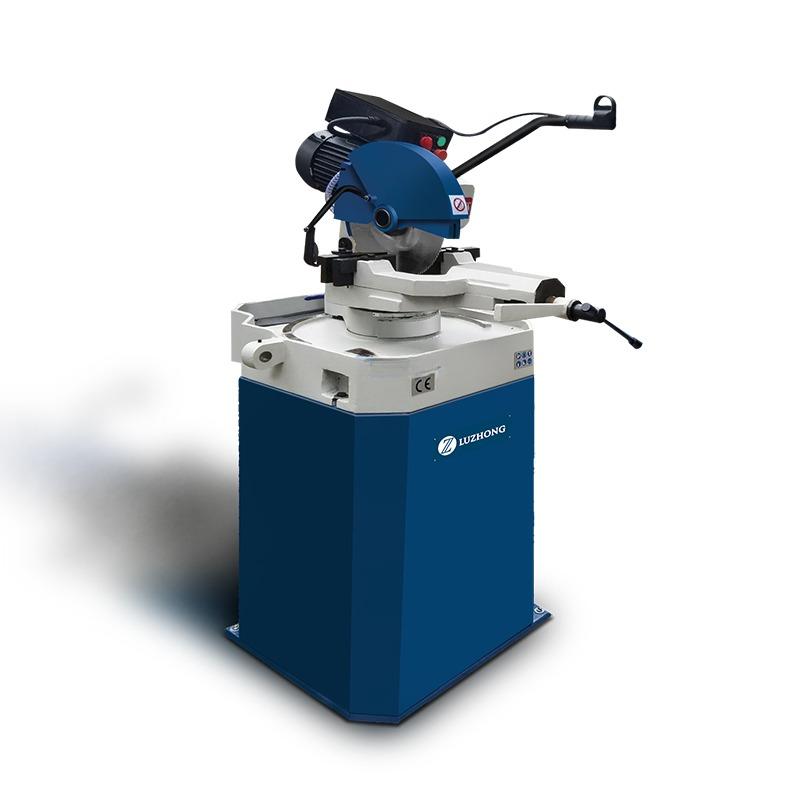

• CS-350 Circular Sawing Machine

CS-350 Circular Sawing Machine

Get a special offer

    MACHINE description

    Model

    CS-350

    Max. blade size

    350mm(13.8″)

    Machining capacity

    Round steel@90°

    120mm(4.7″)



    Square steel@90°

    140×100mm(5.5″×4″)



    Round steel@45°

    105mm(4.1″)



    Square steel@45°

    100×100mm(4″×4″)

    Blade speed @ 50HZ

    18,36rpm

    Vice opening

    145mm(5.7”)

    Motor power

    750W1HP/1.3KW1.7HP(3PH)

    1.1KW1.5HP(1PH)

    Drive

    Gear

    Package size

    98×62×95cm(body)

    77x58x47cm(stand)

    NW/GW

    190/212kg

    CHARACTERISTICS

    The main performance characteristics:

    1. The HSS saw blade of our circular saw is highly efficient and durable.
    2. The 24V low-voltage controlled hand switch is convenient for operation.
    3. The double clamp structure can quickly clamp materials and rotate 45°from side to side for cutting.
    4. Our circular saw features a double speed motor and with low noise can slow down through worm and gear.
    5. The safety hood of saw blade opens or closes according to the cutting needs, making it safety.
    6. The cooling system of circular saw can prolong the service life of saw blade and improve the precision of the work piece.
    7. Vice complete with anti-burr device, Movable head 45°right and left.
    8. Reduction unit in oil bath, Membrane pump for coolant.
