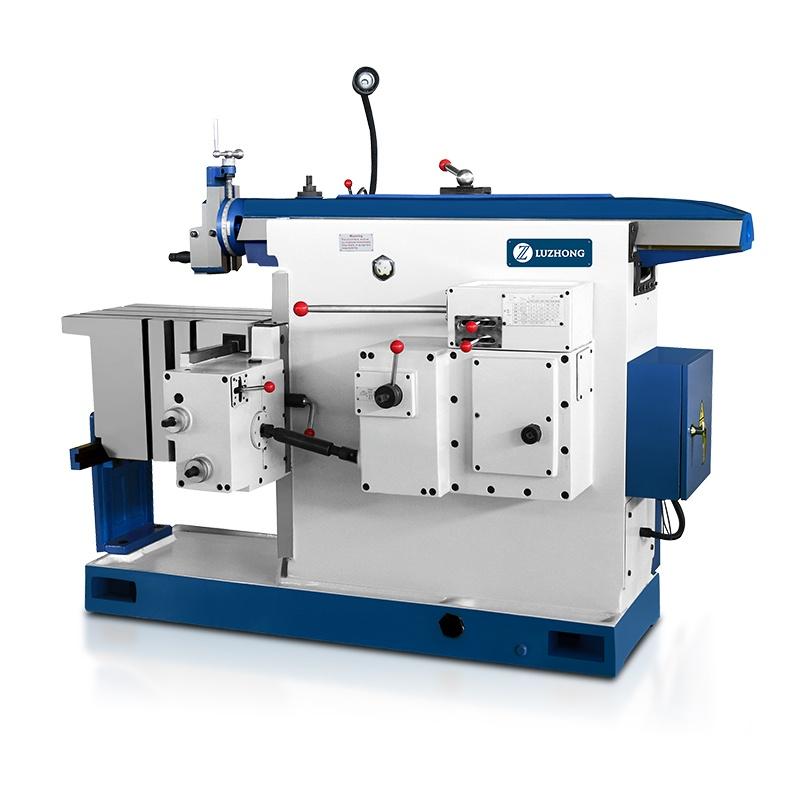

BY60125 Hydraulic Shaper Machine
MACHINE description
|
Specification |
Units |
BY60125 |
|
Max. shaping length |
mm |
1250 |
|
Cutting speed of ram(step less) |
Mm/min |
3-44 |
|
Distance from lower edge of ram to upper surface of table |
mm |
80-400 |
|
Max. cutting force |
N |
28000 |
|
Max. travel of tool post |
mm |
160 |
|
Maximum size of tool planer(W*T) |
mm |
30×45 |
|
Upper working surface of table(L x W) |
mm |
1250x500 |
|
T-slot width of upper table surface |
mm |
22 |
|
Max. horizontal travel of table |
mm |
800 |
|
Horizontal feed of table (per reciprocating stroke of ram, step less) |
mm |
0.25-5 |
|
Main motor power |
KW |
7.5 |
|
Motor for rapid table movement |
KW |
1.5 |
|
Overall dimensions(L x W x H) |
mm |
4140x1550x1850 |
|
N/G.W |
kg |
4350/4850 |
