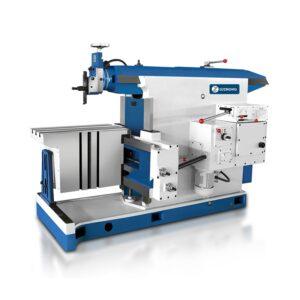

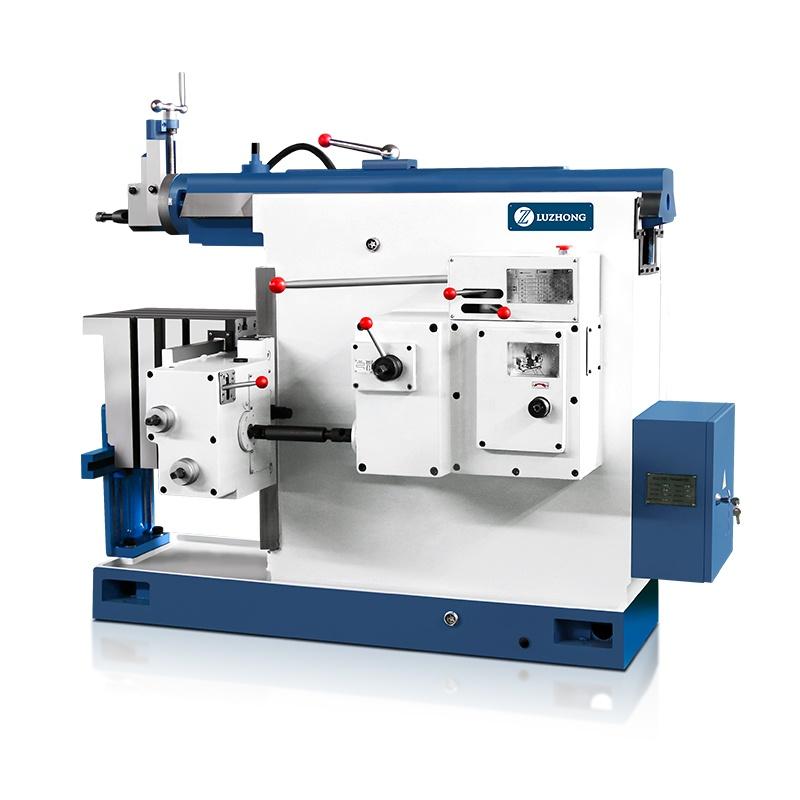

BC6050 Metal Shaper Machine
MACHINE description
|
Specifications |
Units |
BC6050 |
|
Max.ramshaping length |
mm |
500 |
|
Rammoving frequency per minute |
times/min |
14-80 |
|
Table size |
mm |
400X360 |
|
Table horizontal travel |
mm |
525 |
|
Table vertical travel |
mm |
270 |
|
Distance betweenram lower endandtablesurface |
mm |
370 |
|
Tool headtravel |
mm |
120 |
|
Tool head tilt angle |
° |
±60 |
|
Tool shank size |
mm |
20X30 |
|
Table T-slot width |
18 |
|
|
Main motor power |
KW |
3 |
|
Machine weight |
kg |
1650/1760 |
|
Overall dimension(L*W*H) |
mm |
2000X1250X1400 |
