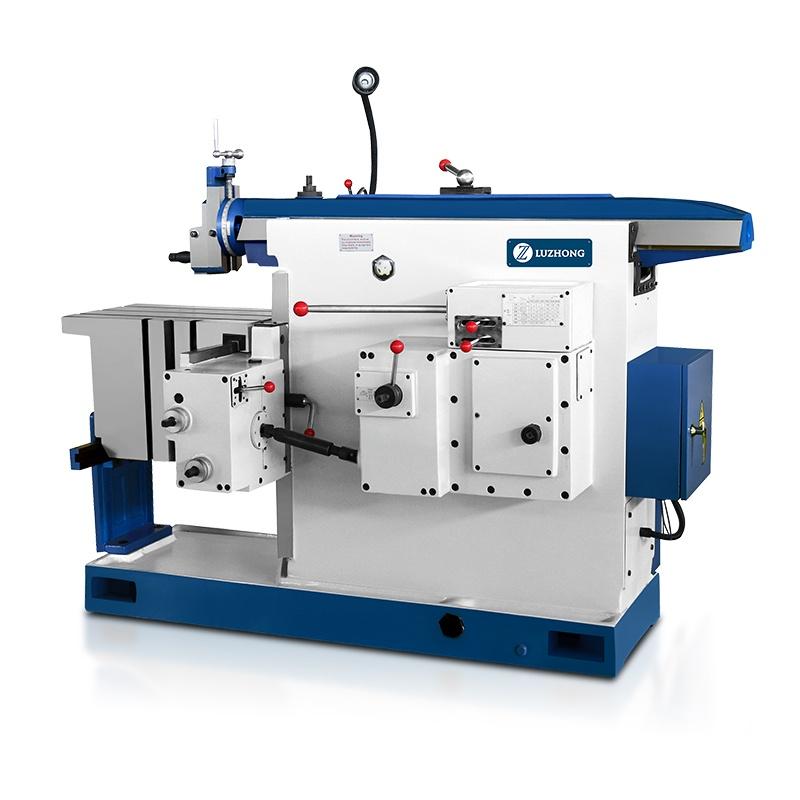

BY60100 Hydraulic Shaper Machine
MACHINE description
|
Specification |
Units |
BY60100 |
|
Max. shaping length |
mm |
1000 |
|
Min. shaping length |
mm |
150 |
|
Cutting speed of ram |
m/min |
3-40 |
|
Distance from lower edge of ram to upper surface of table |
mm |
80-400 |
|
Max. cutting force |
KN |
20 |
|
Max. travel of tool post |
mm |
160 |
|
Max.swivel of knife rest |
±60° |
|
|
Maximum size of tool planer(W*T) |
mm |
30×45 |
|
Horizontal feed of table (per reciprocating stroke of ram, step less) |
mm |
0.25-5 |
|
Vertical feed of table (per reciprocating stroke of ram, step less) |
mm |
0.05-0.25 |
|
Worktable cross rapid traverse |
M/min |
3 |
|
&Worktable vertical rapid traverse |
M/min |
0.15 |
|
Upper working surface of table(L x W) |
mm |
1000×500 |
|
Max. Load of the worktable |
kg |
320 |
|
Max. horizontal travel of table |
mm |
800 |
|
Max.cutting length when knife rest turn around |
mm |
800 |
|
Main motor power |
KW |
7.5 |
|
Motor for tablerapidtraverse |
KW |
1.1 |
|
Overall dimensions(L x W x H) |
mm |
3615×1574×1760 |
|
N/G.W |
kg |
4200/4350 |
