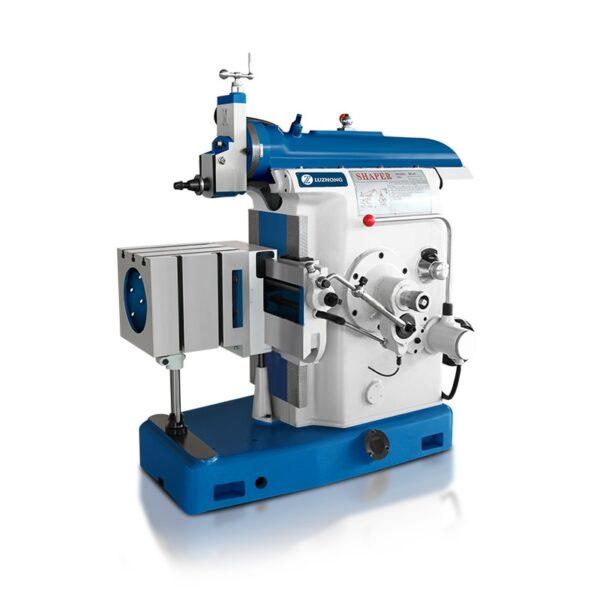

B635A Metal Shaper Machine
MACHINE description
|
Specifications |
Units |
B635 |
|
Max.ramshaping length |
mm |
350 |
|
Rammoving frequencyper minute |
times/min |
3-125 |
|
Table size |
mm |
350x300 |
|
Table horizontal travel |
mm |
400 |
|
Table vertical travel |
mm |
270 |
|
Table rotary angle (without vice) |
° |
±90 |
|
Table rotary angle (with vice) |
° |
±55 |
|
Distance between ram lower end and table surface |
mm |
330 |
|
Tool head travel |
mm |
110 |
|
Tool head tilt angle |
° |
±60 |
|
Tool shank size |
mm |
20x30 |
|
Table T slot width |
mm |
14 |
|
Main motor |
KW/rpm |
1.5/1400 |
|
Machine weight |
kg |
1250 |
|
Overall dimensions (L*W*H) |
mm |
1500x1100x1500 |
