- Optimize the principle of design, the machine is beautiful, easy to operate.
- The vertical and horizontal guide rail is used for rectangular guide and the stability is better.
- The use of advanced ultra – frequency quenching process, so that the machine’s life longer.
- It is suitable for cutting all kinds of small parts of the plane, T type groove and forming surface, can be used for single or mass production.

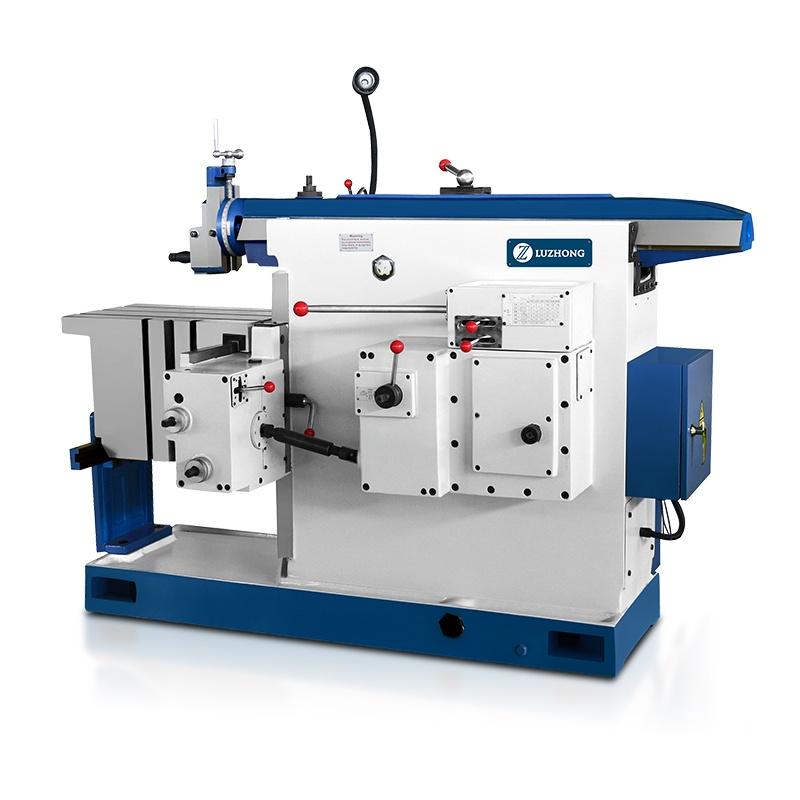

BC60100 Metal Shaper Machine
MACHINE description
|
Specifications |
Units |
BC60100 |
|
Max.ramshaping length |
mm |
1000 |
|
Rammoving frequency per minute |
times/min |
15-83 |
|
Table size |
mm |
1000X500 |
|
Table horizontal travel |
mm |
800 |
|
Table vertical travel |
mm |
380 |
|
Distance betweenram lower endandtablesurface |
mm |
400 |
|
Tool headtravel |
mm |
160 |
|
Tool head tilt angle |
° |
±60 |
|
Tool shank size |
mm |
30X45 |
|
Table T-slot width |
22 |
|
|
Main motor power |
KW |
7.5 |
|
Machine weight |
kg |
5150 |
|
Overall dimension(L*W*H) |
mm |
3700X1600X1800 |
