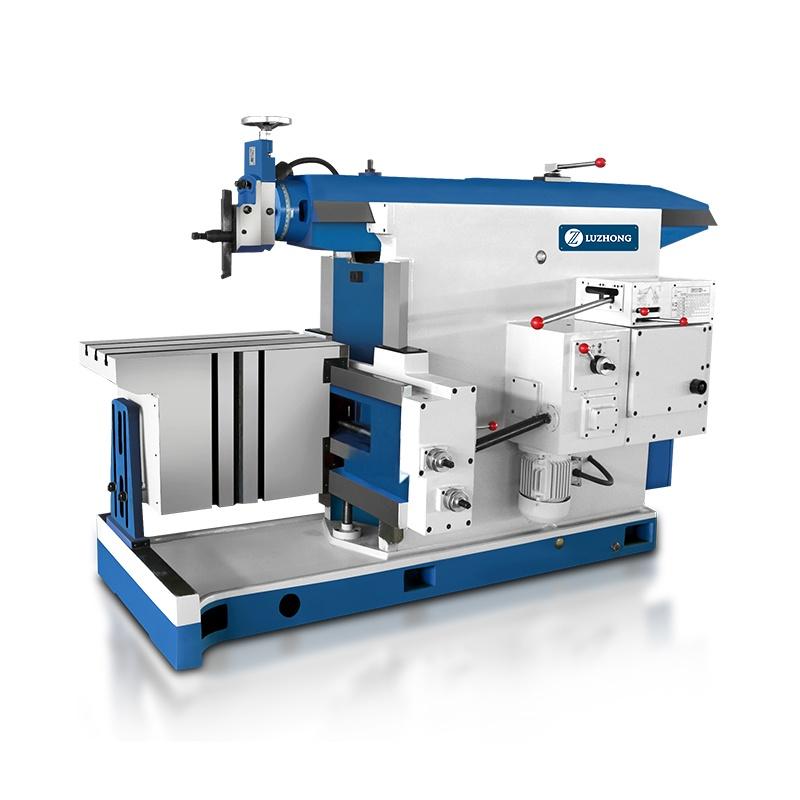

BC6085 Metal Shaper Machine
MACHINE description
|
Specifications |
Units |
BC6085 |
|
Max.ramshaping length |
mm |
850 |
|
Rammoving frequency per minute |
times/min |
17-100 |
|
Table size |
mm |
800X450 |
|
Table horizontal travel |
mm |
710 |
|
Table vertical travel |
mm |
360 |
|
Distance betweenram lower endandtablesurface |
mm |
400 |
|
Tool headtravel |
mm |
160 |
|
Tool head tilt angle |
° |
±60 |
|
Tool shank size |
mm |
30X45 |
|
Table T-slot width |
22 |
|
|
Main motor power |
KW |
5.5 |
|
Machine weight |
kg |
3090 |
|
Overall dimension(L*W*H) |
mm |
2450X1450X1800 |
