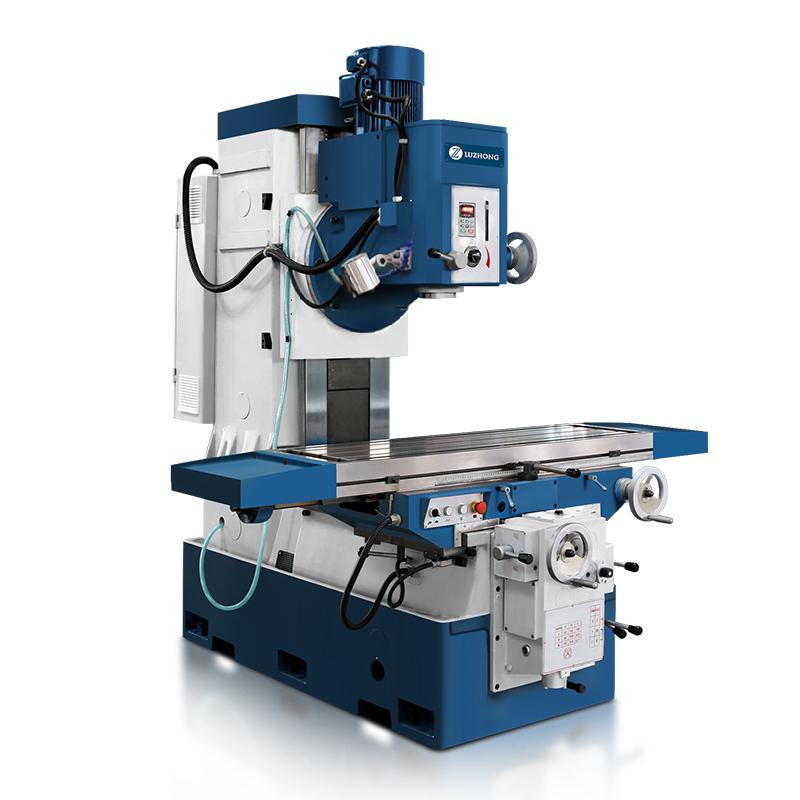

XA7140 Bed Type Milling Machine
MACHINE description
|
Specifications |
Units |
XA7140 |
|
Table size |
mm |
1400x400 |
|
Table stroke |
mm |
800x400 |
|
T-type slot numbers/width/space |
mm |
3-18-100 |
|
Max. load working table |
kg |
800 |
|
Distance from spindle axis to column guide way |
mm |
520 |
|
Distance from spindle nose to table surface |
mm |
150-650 |
|
Spindle taper |
ISO50 |
|
|
Spindle quill travel |
mm |
105 |
|
Spindle speed range |
rpm |
18-1800 |
|
Spindlemotor power |
KW |
7.5 |
|
Overall dimensions |
mm |
2290x1840x2080 |
|
Machineweight |
Kg |
3860 |
