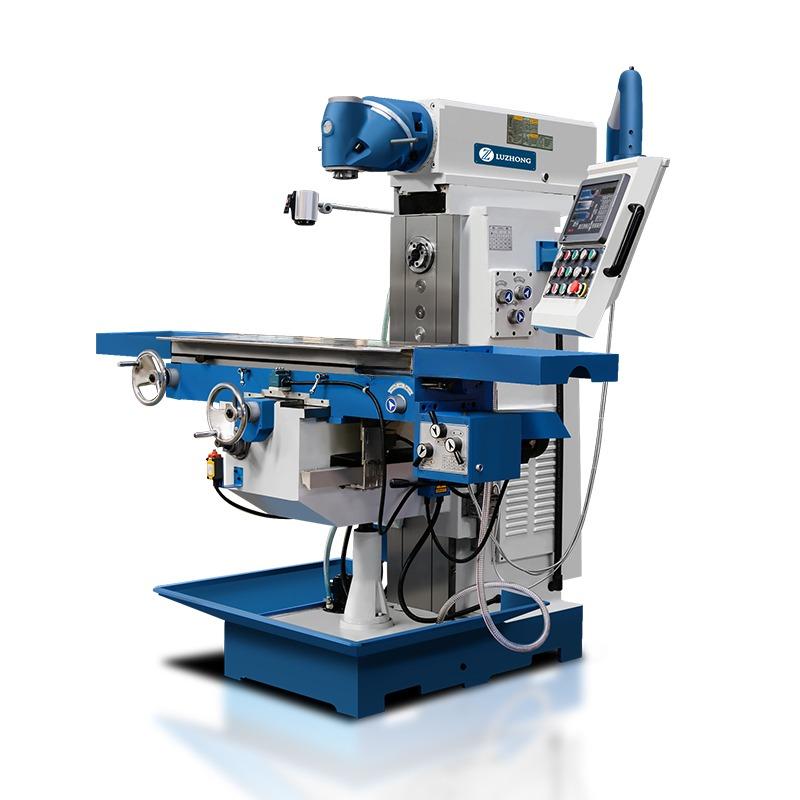

X6432 Swivel Head Milling Machine
MACHINE description
|
Specifications |
Units |
X6432 |
|
Tablesize |
mm |
1500x320 |
|
Tabletravel |
mm |
1000/320/400 |
|
T-slot numbers / width /space |
mm |
3-16-60 |
|
Spindle taper |
ISO40(V) ISO40(H) |
|
|
Spindle speed range |
rpm |
48-1660rpm(V) 40-1300(H) |
|
Distance between spindle nose and table surface |
mm |
120-520 |
|
Distancebetweenspindleaxisandtable surface |
mm |
0-400 |
|
Range of table feed |
mm /min |
XY:22-555,Z:electric |
|
Milling head swivel range |
° |
360 |
|
Spindle motor power |
kw |
3(V)/3(H) |
|
Feed motor power |
kw |
1.1 |
|
Weight |
kg |
2100 |
|
Overall dimension |
mm |
2050x1750x2000 |
