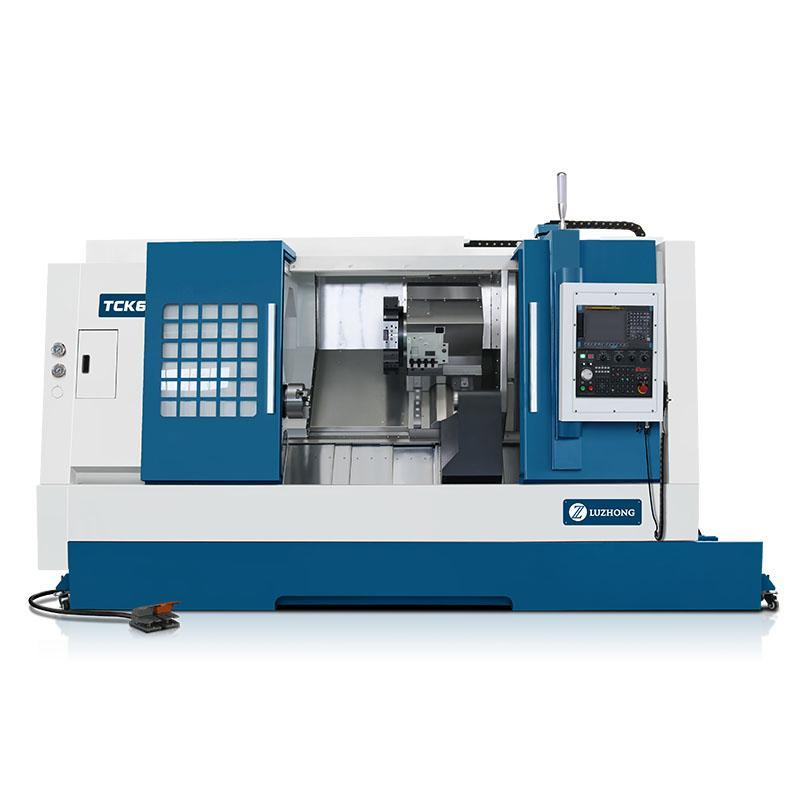

TCK63 Slant Bed CNC Lathe Machine

SPECIFICATIONS

Units

TCK63

Swing over bed

mm

720

Max. workpiece length

mm

1000 /1500 /2000 /3000

Max. cutting diameter

mm

500

Spindle bore

mm

80

Spindle nose type

-

A2-11

Spindle speed steps

-

Stepless

Spindle speed range

rpm

50-3500

Chuck

-

12'' Hollow hydraulic chuck

Turret/tool post

-

Servo turret 12position

X axis travel

mm

250

Z axis travel

mm

1020/1520/2050/3050

X axis rapid traverse

m/min

12

Z axis rapid traverse

m/min

16

Main motor power

kw

15/18.5

Tailstock quill taper

-

MT5

Tailstock base travel

mm

900/1400/1900/2900

Guide rail type

-

45°Slant bed linear rail

Machine weight

kg

5000/6000/7000/9000
