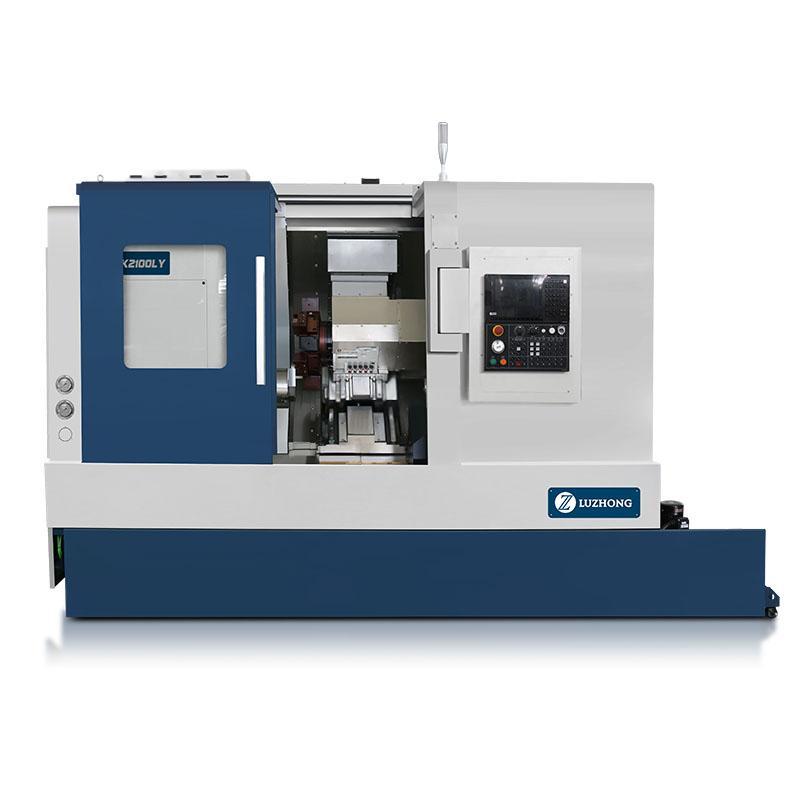

TCK2100LY Slant Bed CNC Lathe Machine

SPECIFICATIONS

Units

TCK2100LY

Max. Swing diameter

Mm

650

Max.cutting length

mm

500

Max. cutting diameter

Mm

350

Spindle nose type

/

A2-6

Spindle bore

Mm

65

Spindle speed

RPM

4500

X axis travel

Mm

260

Y axis travel

Mm

-0.714285714

Z axis travel

Mm

360

Main motor power

Kw

30

Spindle speed steps

R/min

variable speed

X/Y/Z axis rapid traverse

m/min

12/12/16

Tool holder type

/

12 position live turret

Machine weight

kg

5000
