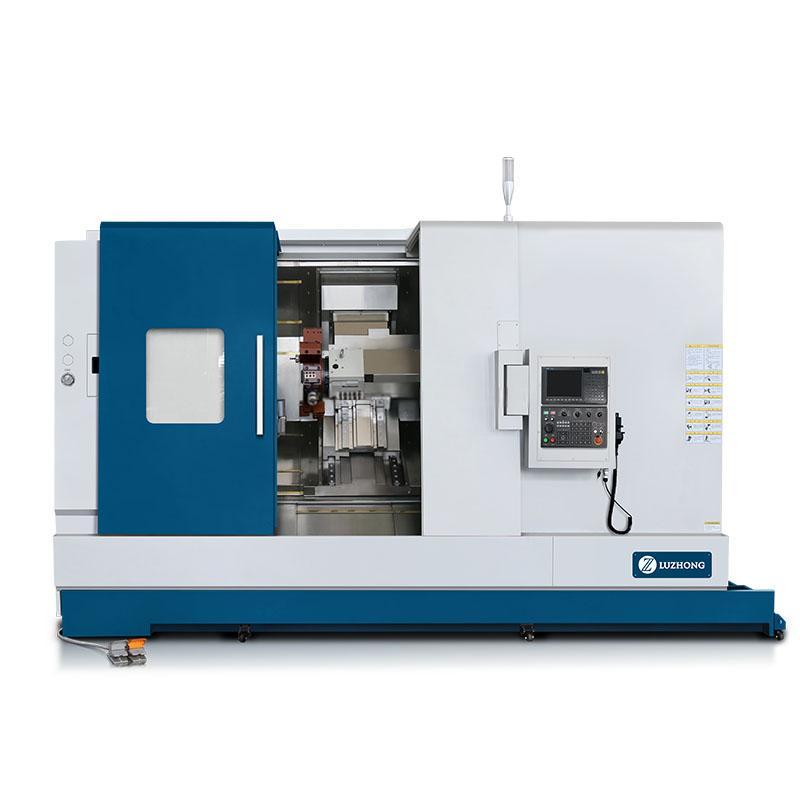

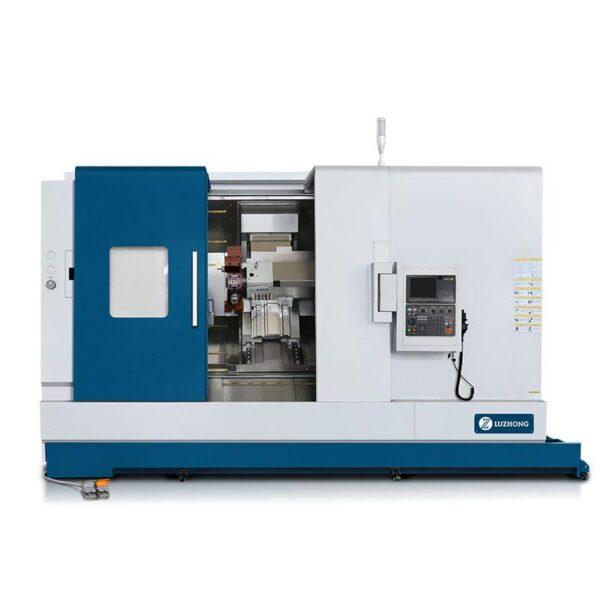

TCK3100LY Slant Bed CNC Lathe Machine

SPECIFICATIONS

Units

TCK3100LY

Max. Swing diameter

Mm

750

Max.cutting length

mm

1000

Max. cutting diameter

Mm

500

Spindle nose type

/

A2-8

Spindle bore

Mm

85

Spindle speed

RPM

3000

X axis travel

Mm

400

Y axis travel

Mm

-1

Z axis travel

Mm

850

Main motor power

Kw

37

Spindle speed steps

R/min

variable speed

X/Y/Z axis rapid traverse

m/min

12/12/16

Tool holder type

/

12 position live turret

Machine weight

kg

6500
