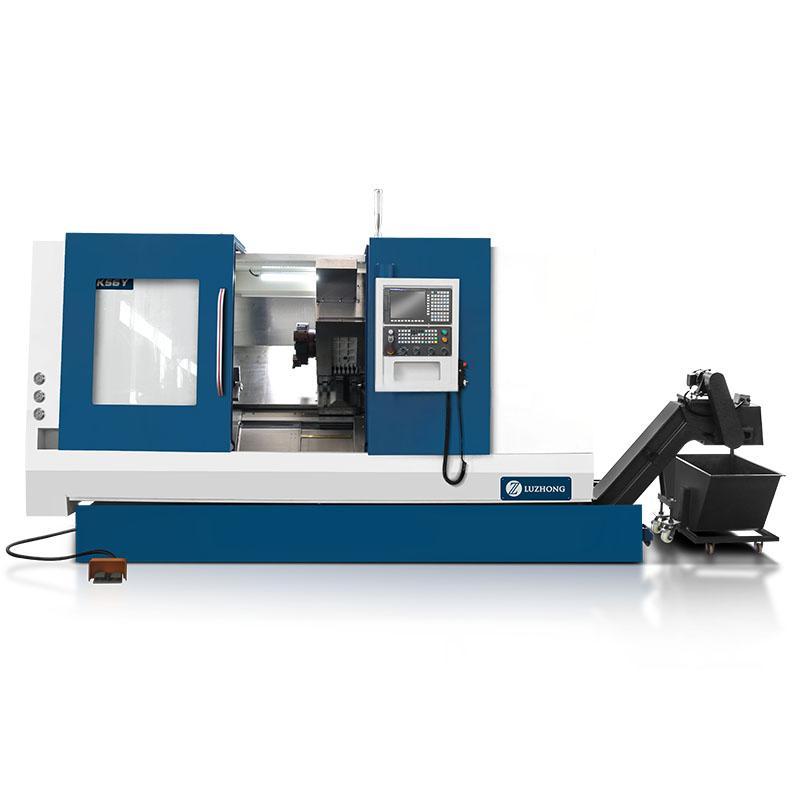

TCK56Y Slant Bed CNC Lathe Machine
from /month
MACHINE description
|
SPECIFICATIONS |
Units |
TCK56Y |
|
Swing over bed |
mm |
560 |
|
Max. workpiece length |
mm |
500/1000 |
|
Max. cutting diameter |
mm |
310 |
|
Spindle bore |
mm |
65 |
|
Spindle nose type |
- |
A2-6（Opt.A2-8) |
|
Spindle speed steps |
- |
Stepless |
|
Spindle speed range |
rpm |
50-4500 |
|
Chuck |
- |
8'' Hollow hydraulic chuck (Opt. 10'') |
|
X axis travel |
mm |
200 |
|
Y axis travel |
mm |
±50 |
|
Z axis travel |
mm |
450/900 |
|
X axis rapid traverse |
m/min |
30 |
|
Y axis rapid traverse |
m/min |
12 |
|
Z axis rapid traverse |
mm/min |
30 |
|
Main motor power |
kw |
11~15 |
|
Turret type |
12 Station power turret |
|
|
Turret Model |
BMT45-ER25 |
|
|
Tailstock quill taper |
- |
MT4（Opt.MT5） |
|
Tailstock base travel |
mm |
400/900 |
|
Guide rail type |
- |
Slant bed linear rail |
|
Machine weight |
kg |
4800/6500 |
