45 degrees slant bed CNC lathe
Higher accuracy Taiwan linear
Screw pre-stretching structure
Gang type tool post

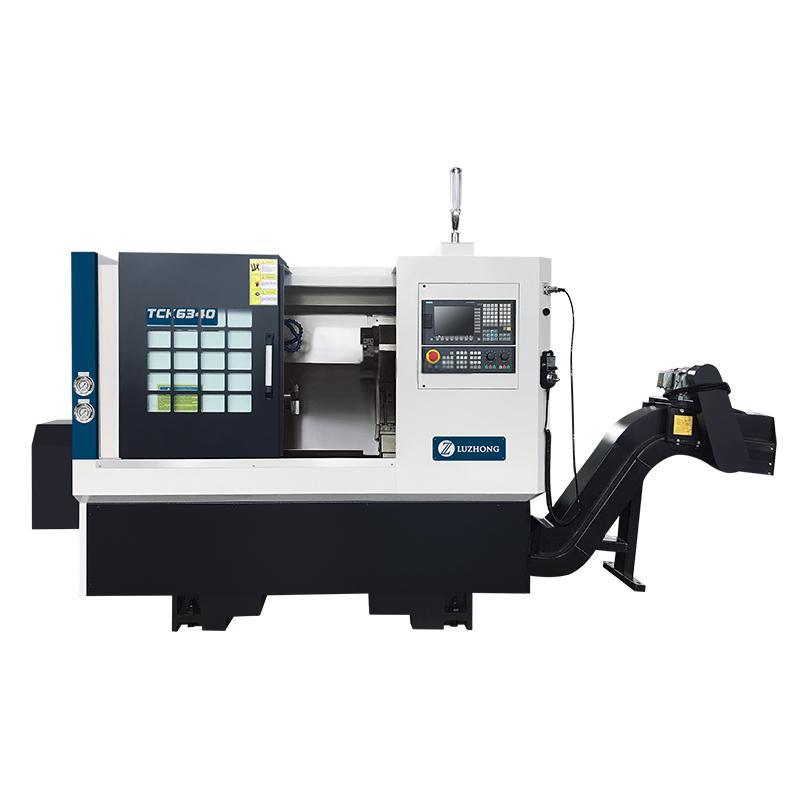

TCK6340 TCK6340S Slant Bed CNC Lathe Machine
from /month
MACHINE description
| SPECIFICATIONS | Units | TCK6340 | TCK6340S |
| Swing over bed | mm | 400 | 400 |
| Swing over cross slide | mm | 140 | 140 |
| Max. workpiece length | mm | 180 | 390(Turret 300) |
| Spindle bore | mm | 48(Opt. 56) | 48(Opt. 56) |
| Spindle nose type | - | A2-5 | A2-5 |
| Spindle speed steps | - | Stepless | Stepless |
| Spindle speed range | rpm | 3500 | 3500 |
| Turret/tool post | - | Gang type | Gang type (Opt.Turret) |
| Tool size | mm | 20*20 | 20*20 |
| X axis travel | mm | 400 | 400 |
| Z axis travel | mm | 300 | 400 |
| X axis rapid traverse | mm/min | 24000 | 24000 |
| Z axis rapid traverse | mm/min | 24000 | 24000 |
| Main motor power | kw | 5.5 | 5.5 |
| Guide rail type | - | Linear rail | Linear rail |
| Machine weight | kg | 2300 | 2600 |
| Overall dimension | mm | 2200*1530*1780 | 2390*1530*1780 |
