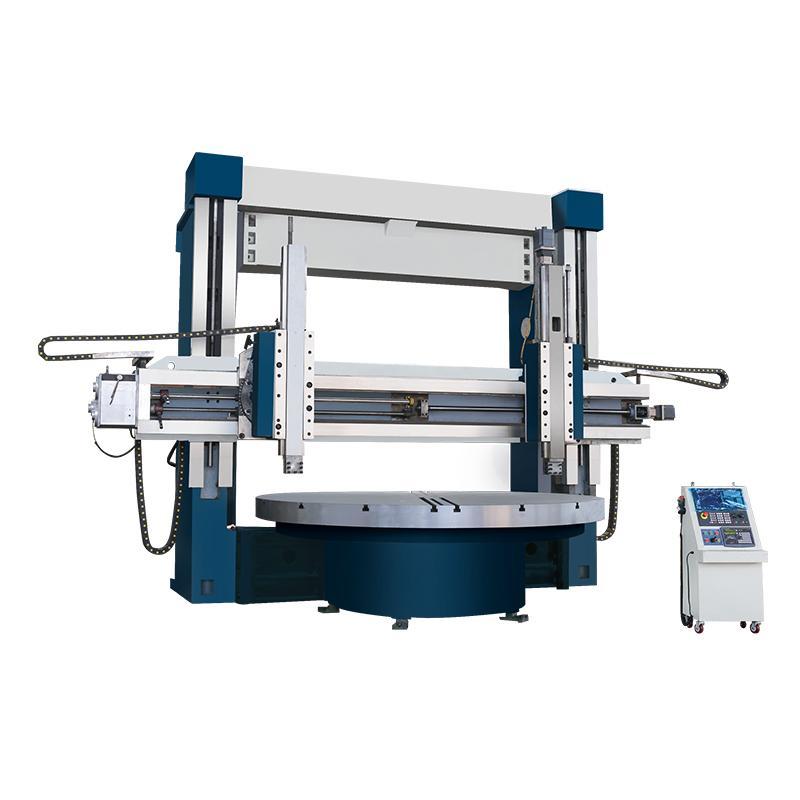

CK5225xH/20 CNC Vertical Lathe Machine
MACHINE description
|
Specification |
units |
CK5225×H/20 |
|
Max,turning diameter |
mm |
2500 |
|
Table diameter |
mm |
2250 |
|
Max,height of workpiece |
mm |
1600/2000 |
|
Max.weight of workpiece |
t |
20 |
|
Max.torque of table |
KN.m |
63 |
|
Spindle speed range |
r/min |
2-63 |
|
Max.cutting force of rail head |
KN |
30 |
|
Range of tool feed |
mm/min |
0.2-145 |
|
Horizontal tool travel |
mm |
1400 |
|
Vertrical tool travel |
mm |
1000 |
|
Tool head srapid traverse |
mm/min |
3500 |
|
Tool size |
mm |
40×50 |
|
Main motor power |
KW |
55 |
|
Overall dimension |
cm |
540×470×480/520 |
|
Machine weight(Approx.) |
t |
34/36 |
