45 degrees slant bed CNC lathe
Higher accuracy Taiwan linear
Screw pre-stretching structure
Gang type tool post

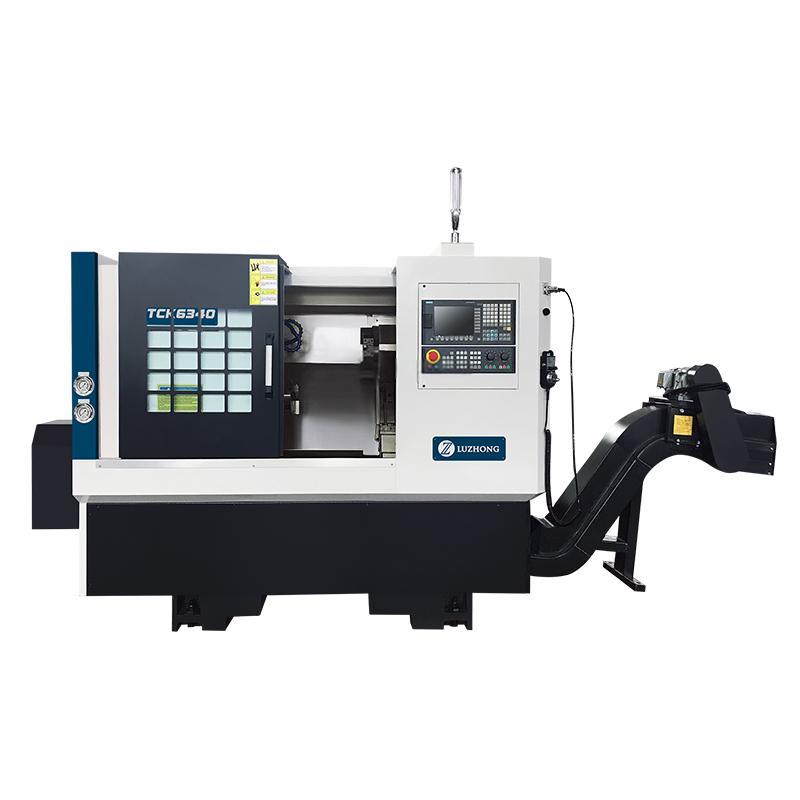

TCK6350 Slant Bed CNC Lathe Machine
MACHINE description
|
SPECIFICATIONS |
Units |
TCK6350 |
|
Swing over bed |
mm |
520 |
|
Swing over cross slide |
mm |
220 |
|
Max. workpiece length |
mm |
410(Turret 330) |
|
Spindle bore |
mm |
66 |
|
Spindle nose type |
- |
A2-6 |
|
Spindle speed steps |
- |
Stepless |
|
Spindle speed range |
rpm |
3000 |
|
Turret/tool post - |
- |
Gang type (Opt. Turret) |
|
Tool size |
mm |
25*25 |
|
X axis travel |
mm |
500 |
|
Z axis travel |
mm |
500 |
|
X axis rapid traverse |
mm/min |
24000 |
|
Z axis rapid traverse |
mm/min |
24000 |
|
Main motor power |
kw |
7.5 |
|
Guide rail type |
- |
Linear rail |
|
Machine weight |
kg |
3000 |
|
Overall dimension |
mm |
2500*1620*1890 |
