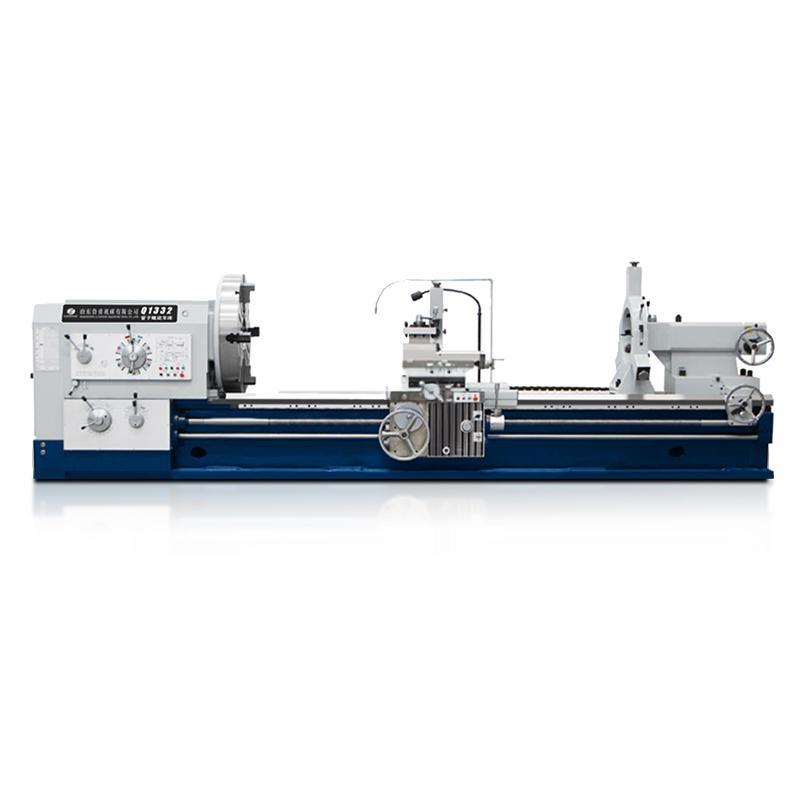

Q1313 Pipe Threading Lathe Machine

SPECIFICATIONS

Units

Q1313

Swing over bed

mm

630/800

Swing over cross slide

mm

340/520

Distance between centers

mm

1500/3000

Pipe threading range

mm

30-126

Guideway width

mm

550

Max. load capacity

kg

3000

Spindle bore

mm

130

Spindle speed steps

-

FWD.18steps/REV.9steps

Spindle speed range

rpm

30-650

Chuck

mm

φ4003-jaw manual

Turret/tool post

-

/Manual 4 position

Tool shank size

mm

30 x 30

X axis travel

mm

320/420

Z axis travel

mm

1350/2850

X axis feedsteps/range

mm/r

22/0.02-0.45

Z axis feedsteps/range

mm/r

26/0.07-1.33

X axis rapid traverse

mm/min

2300

Z axis rapid traverse

mm/min

4000

Metric threadkinds/range

mm

52/1-24

Inch threadkinds/range

T.P.I

40/28-2

Tailstock quill diameter

mm

100

Tailstock quill taper

-

MT5

Tailstock quill travel

mm

250

Main spindle motor

kw

11

Rapid traverse motor

kw

0.3

Coolant pump motor

kw

0.125

Weightfor 1500

kg

40000

Weightfor 3000

kg

52000

Dimension for 1500

mm

3700x1500x1500

Dimension for 3000

mm

5200x1500x1500
