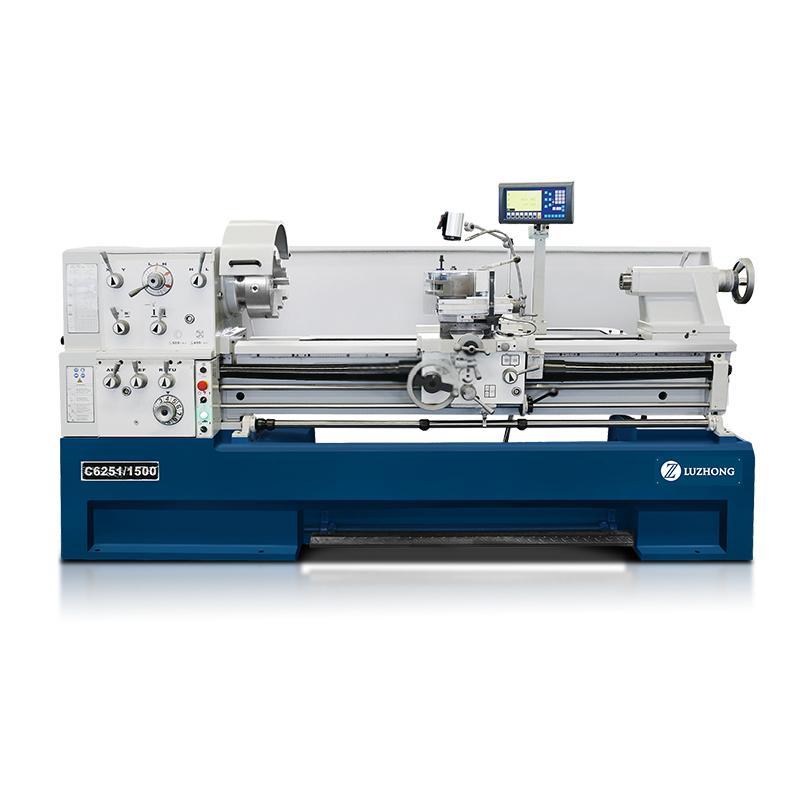

C6251 Lathe Machine
MACHINE description
|
SPECIFICATION |
C6251 |
|
Swingoverred |
510mm(20") |
|
Swingover cross slide |
305mm(11-7/8") |
|
Swingingap |
735mm(29") |
|
Lengthofgap |
200mm(8") |
|
Distancebetweencenters |
1000mm(60")/1500mm(60")/2000mm(80")/3000(120") |
|
Centerheight |
1135mm |
|
Widthofbed |
350mm(13-3/4") |
|
Spindlenose |
D1-8 |
|
Spindlebore |
80mm(3-1/8") |
|
Taperofspindlebore |
No.7Morse |
|
Rangeofspindlespeed |
12changes25-1600r/min |
|
Max.travelofcompoundrest |
130mm(5-1/8") |
|
Max.travelofcrossslide |
316mm(12-15/16") |
|
Leadscrewpitch |
6mmOr4T.P.L |
|
Max.sectionoftool |
25×25mm(1×1") |
|
Longitudinalfeedsrange |
35kinds0.059-1.646mm/rev(0.0022"-0.0612"/rev) |
|
Crossfeedsrange |
35kinds0.020-0.573mm(0.00048"-0.01354") |
|
Metricthreadsrange |
47kinds0.2-14mm |
|
Inchthreadsrange |
60kinds2-112T.P.L |
|
Diametricalpitchesrange |
50kinds4-112D.P. |
|
Modulepitchesrange |
39kinds0.1-7M.P. |
|
Diaoftailstocksieeve |
75mm(3") |
|
Traveloftailstocksleeve |
180mm(7") |
|
Morsetaperoftailstocksleeve |
No.5Morse |
|
Crossadjustment |
±13mm(±1/2") |
|
Powerofmainmotor |
7.5kw(10HP)3PH |
|
Powerofcoolantpump |
0.1kw(1/8HP),3PH |
|
Overalldimension(L×W×H) |
239/284/334/434×115×143cm |
|
Packingsize(L×W×H) |
245/290/340/440×115×143cm |
|
Netweight/Grossweight |
2035/2415 2160/2550 2435/2840 2805/3270 |
