- The maximum processing capability of BAND SAW BS-1018 is 10″(254mm)
- High-capacity due to controlled by motor
- Can rotate from 0° to 45°
- has the advantage of quickly clamping.
- features a belt driven and has four cutting speed.
- The falling speed of saw bow is controlled by hydraulic cylinder
- With a sizing device, machine will stop automatically after sawing materials
- With power break protection device, machine will power off automatically when the rear protective cover is opened
- With coolant system, can prolong the service life of saw blade and improve the precision of work piece
- has a block feeder (with fixed sawing length)

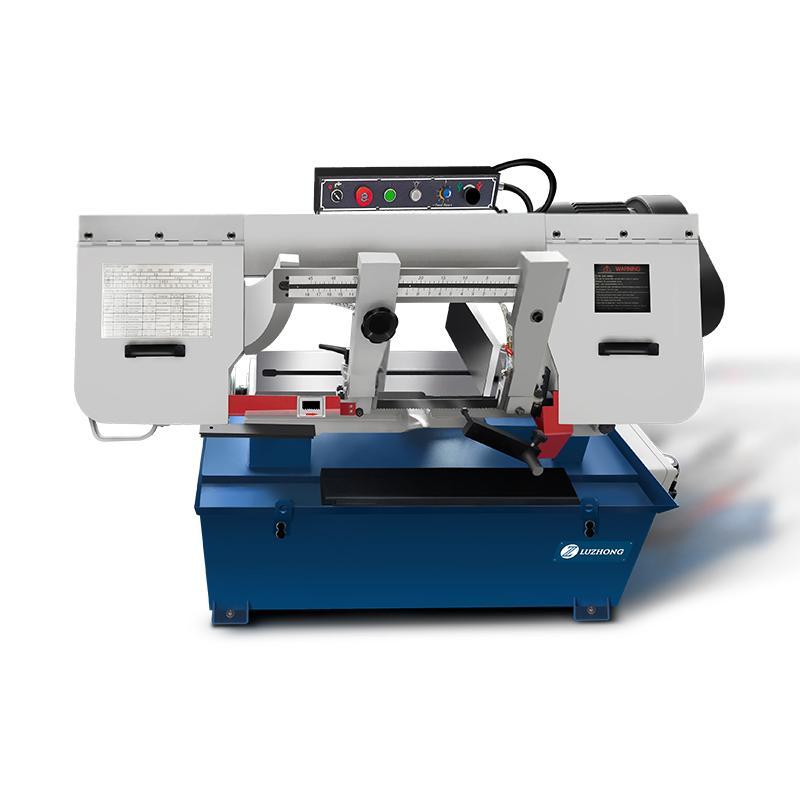

BS-1018B Band Saw Machine
MACHINE description
Model |
BS-1018B |
|
Machining capacity |
Round steel@90° |
254mm(10″) |
Square steel@90° |
127×457mm(5″×18″) |
|
Round steel@45° |
150mm(6”) |
|
Square steel@45° |
150×190mm(6″×7.5″) |
|
Saw cutting speeds |
@ 60HZ |
35,60,88,115MPM |
@ 50HZ |
29,50,73,95MPM |
|
Saw blade size |
27×0.9×3280mm |
|
Motor power |
1.5W 2HP(3PH) |
|
Drive |
V-belt |
|
Package size |
183×83×115cm |
|
NW/GW |
310/385kg |
|
