Application：
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.

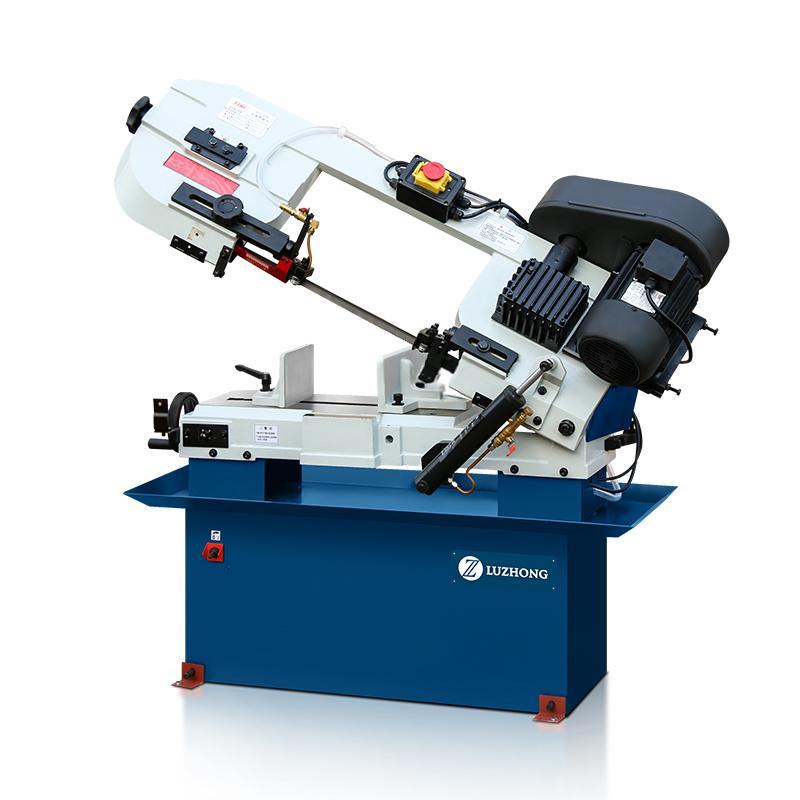

BS-712N Band Saw Machine
MACHINE description
Main technical parameters |
BS-712N |
|
Machining capacity |
@90°Round steel |
178mm(7″) |
@90°Square steel |
178×305mm(7″×12″) |
|
@45°Round steel |
127mm(5″) |
|
@45°Square steel |
120×125mm(4.75″×4.88″) |
|
Saw cutting speeds |
@ 50HZ |
27,41,59,78MPM |
@ 60HZ |
22,34,49,64MPM |
|
Saw blade size |
20×0.9×2362mm |
|
Motor power |
750W1HP(3PH),1.1Kw1.5HP(1PH) |
|
Drive |
Belt |
|
Package size |
125×45×115cm |
|
NW/GW |
145/178kg |
|
CHARACTERISTICS
The main performance characteristics：
- The maximum processing capacity is 7″,
- The belt drive has fourth gear cutting speed (indicated by the letter N);
- The belt drive has third th gear cutting speed (indicated by the letter G);
- The Fast clamp, clamp the rotary of (0 degrees ~45 degrees) cutting (BS-712N);
- With a locking handle, a saw bow rotary (0 degrees ~45 degrees ) cutting (BS-712GR);
- Can the vertical horizontal dual-use ;
- The fall speed of the saw bow is controlled by the hydraulic cylinder;
- The machinery with base a roller, can be free to move ;
- With stop device (After the machine sawing and cutting will automatically stop );
- With a open the door power-off protection device (rear protection cover open when the machine will automatically power off),
- The cooling system can prolong the service life of the saw blade, can improve the accuracy of the work piece;
- Block device (fixed sawing length);
