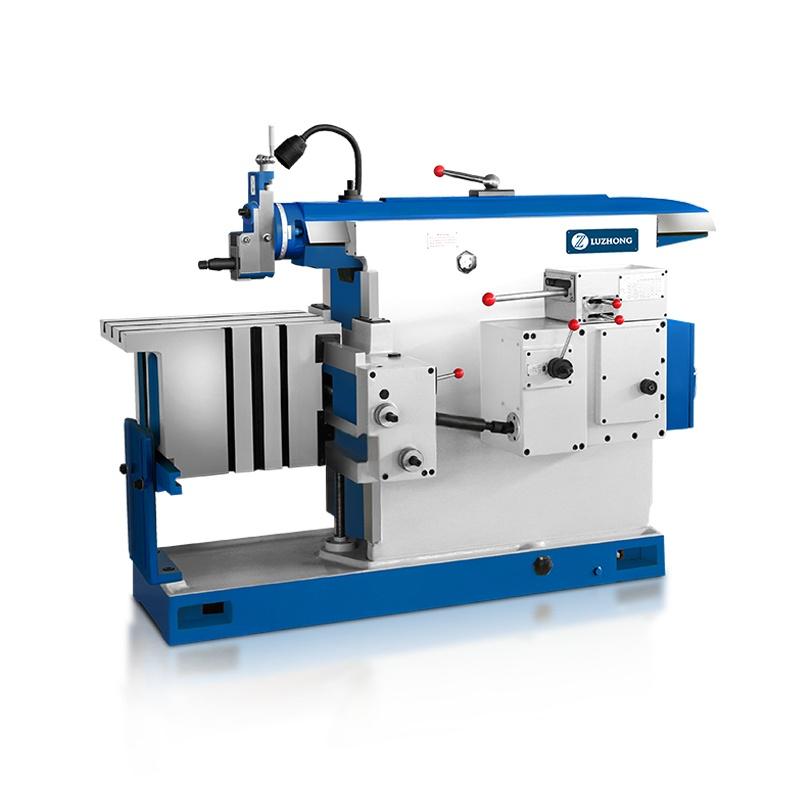

BC6063 Metal Shaper Machine
MACHINE description
Specifications |
Units |
BC6063 |
|
Maximum shaping length |
mm |
630 |
|
Max.distance between he ram bottom and table |
mm |
385 |
|
Max.range of the horizontal movement of the table |
mm |
630 |
|
Max.length of the vertical movement of table |
mm |
360 |
|
Dimension of table top(L*W) |
mm |
630X400/ |
|
Travel of tool head |
mm |
120 |
|
Number of ram strokes per minute |
Times min |
14,20,28,40,56,80 |
|
Swivel of tool head |
° |
+/-60 |
|
Maximum size of tool shank(W*T) |
mm |
20X30 |
|
Range of table feed |
Horizontal 12 steps |
mm |
0.4-5 |
vertical 12 steps |
mm |
0.08-1.00 |
|
Width of the T-slot for center positioning |
mm |
18 |
|
Main motor power |
KW |
3 |
|
Overall dimension(L*W*H) |
mm |
2000X1300X1550 |
|
N.w./G.W |
kg |
1750/1870 |
|
