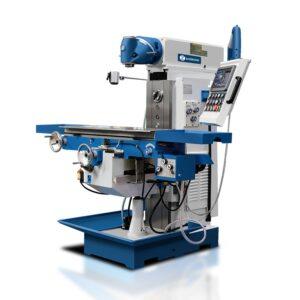

X5036B Vertical Milling Machine

from /month

Specifications	Units	X5036B	X5036B-1	X5036K
Table size	mm	1500×360	1500×360	1500×360
Tabletravel	mm	800/320/450	1000/320/450	1000/320/450
T slot(number-width-pitch)	mm	3-18-80	3-18-80	3-18-80
Spindle taper	ISO50 7:24	ISO50 7:24	ISO50 7:24
Spindle speed range	rpm	60-1700(12steps)	60-1700(12steps)	60-1800(12steps)
Distance between spindle nose and table surface	mm	60-540	60-540	60-540
Distancebetweenspindleaxisto column surface	mm	360	360	360
Mainmotor power	kw	4	4	5.5
Weight	kg	2700	2700	3300
Overall dimension	mm	2600×2200×2220	2600×2200×2220	2700×2300×2400

The use of the moment type of rail steel is good, strong stability
High frequency quenching of working table and guide surface
Working table Y, X are both gear drive automatic feed, Z for electric lift
X5036B – type slider (1200mm) to make the work of the working table longer, better stability
B type milling head with automatic feed device can be customized according to user requirements of the X direction of the work table 1300mm
