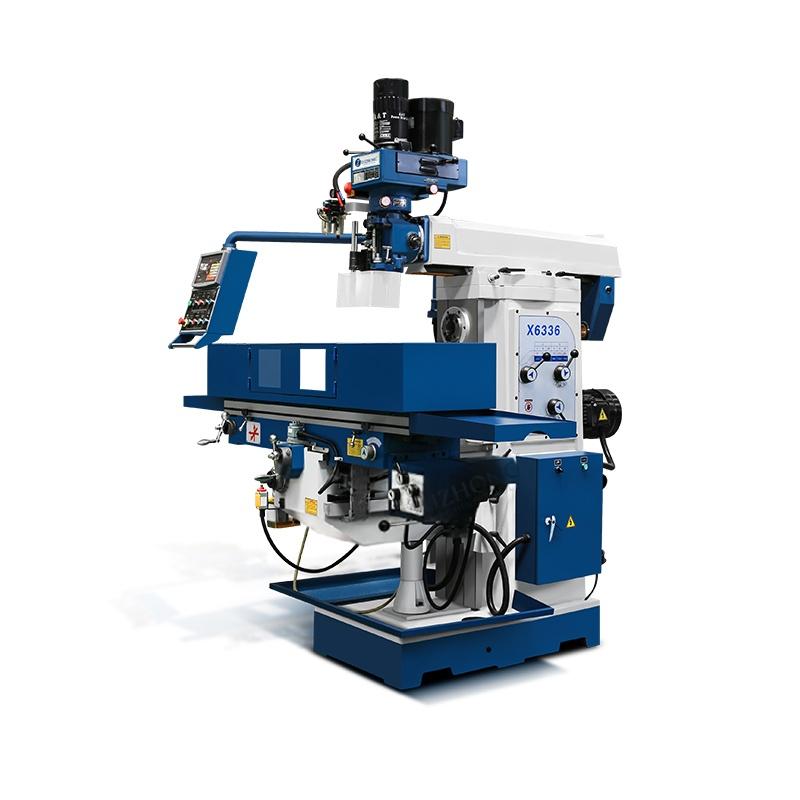

X6336 Turret Milling Machine
MACHINE description
|
Specifications |
Units |
X6336 |
|
Table size |
mm |
1500×360 |
|
Tabletravel |
mm |
1000/320/450 |
|
T slot(number-width-pitch) |
mm |
3-18-80 |
|
Spindle taper |
ISO407:24(V) ISO507:24(H) |
|
|
Spindle speed range |
rpm |
(V)50HZ:65-4500,60HZ:80-5440,16 steps; (H) 60-1800,12steps Optional:variable65-4000 |
|
Spindle travel |
mm |
127 |
|
Spindle feed range |
mm |
0.04,0.08,0.15 (3 steps) |
|
Distance between spindle nose and table surface |
mm |
140-590 |
|
Distance between spindleaxisand table surface |
mm |
0-450 |
|
Mainmotor power |
kw |
3.7(V)4(H) |
|
Head rotation (left - right ) |
° |
±90° |
|
Head rotation (front - rear) |
° |
±45° |
|
Weight |
kg |
2400 |
|
Overall dimension |
mm |
2600×2200×2550 |
