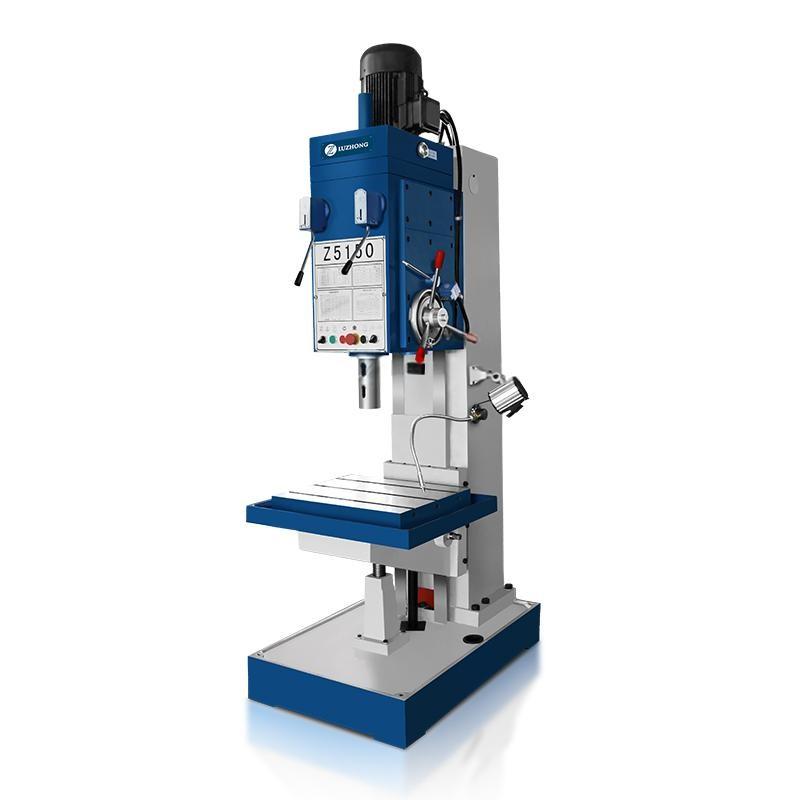

Z5150 Vertical Drilling Machine

Specifications

Z5150

Max drilling dia

50mm

Spindle taper

MT5

Spindle stroke

250mm

Headstock travel(manual)

200mm

Spindle speeds

31.5-1400r/min 12 steps

Feed range

0.056-1.80mm/r 9 steps

Table size

560x480mm

Table vertical travel

300mm

Max.distance spindle nose to table

750mm

Main motor power

3kw

Overall dimension

1090*905*2465mm

N/W

1350kg
