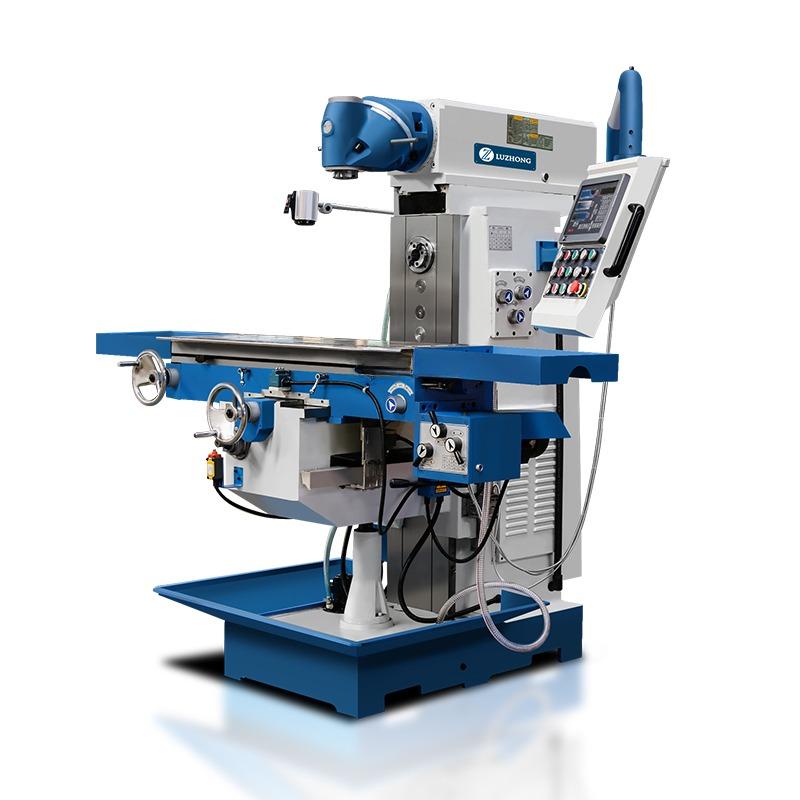

X6226 Swivel Head Milling Machine
MACHINE description
|
Specifications |
Units |
X6226 |
|
Tablesize |
mm |
1200x260 |
|
Tabletravel |
mm |
600/280/400 |
|
T-slot numbers / width /space |
mm |
5-14-40 |
|
Spindle taper |
ISO40 |
|
|
Spindle speed range |
rpm |
48-1660rpm |
|
Distance between spindle nose and table surface |
mm |
100-500 |
|
Distancebetweenspindleaxisandtable surface |
mm |
- |
|
Range of table feed |
mm /min |
X:48-370 YZ:manual |
|
Milling head swivel range |
° |
360 |
|
Spindle motor power |
kw |
3 |
|
Feed motor power |
kw |
0.75 |
|
Weight |
kg |
1400 |
|
Overall dimension |
mm |
1660x1500x1750 |
