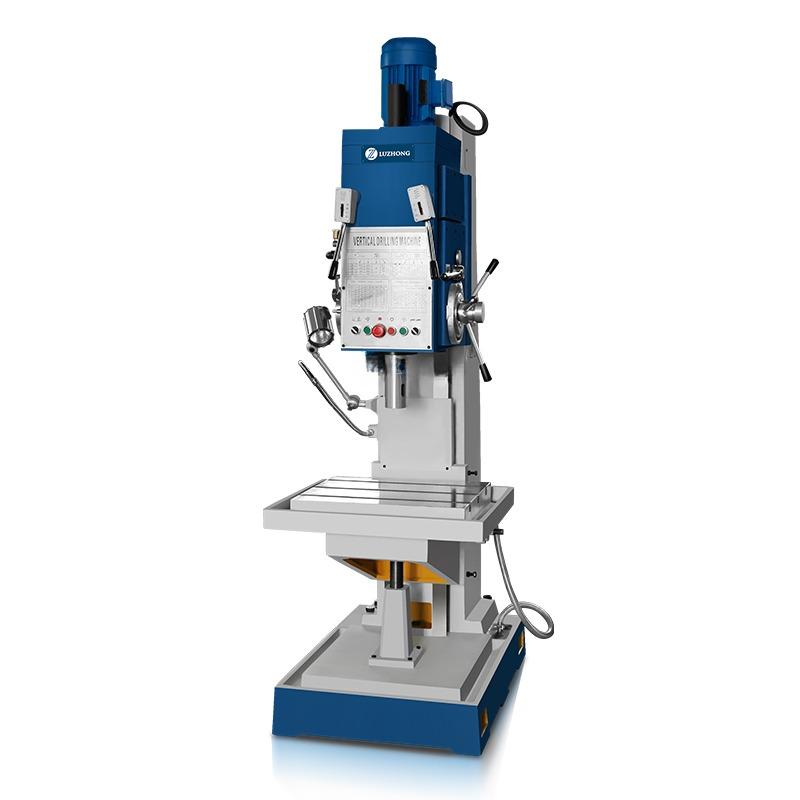

Z5125 Vertical Drilling Machine
MACHINE description
|
Specifications |
Z5125 |
|
Max drilling dia |
25mm |
|
Max feed resistance |
9000N |
|
Max. spindle allowable torque |
160N.m |
|
Spindle taper |
Morse No. 3 |
|
Distance from spindle axis to column guideway |
280mm |
|
Spindle travel |
200mm |
|
Spindle box travel |
200mm |
|
Spindle speed |
50～2000r/min（9） |
|
The amount of feed(mm/rev) |
0.056-1.80mm/r（9） |
|
Working table stroke |
310mm |
|
Working table surface size |
400×550mm |
|
Distancefromspindlenosetotablesurface |
710mm |
|
Main motor power |
2.2kw |
|
Cooling pump flow |
25L/min |
|
Overall dimension |
980*807*2302mm |
|
N/W |
1200kg |
