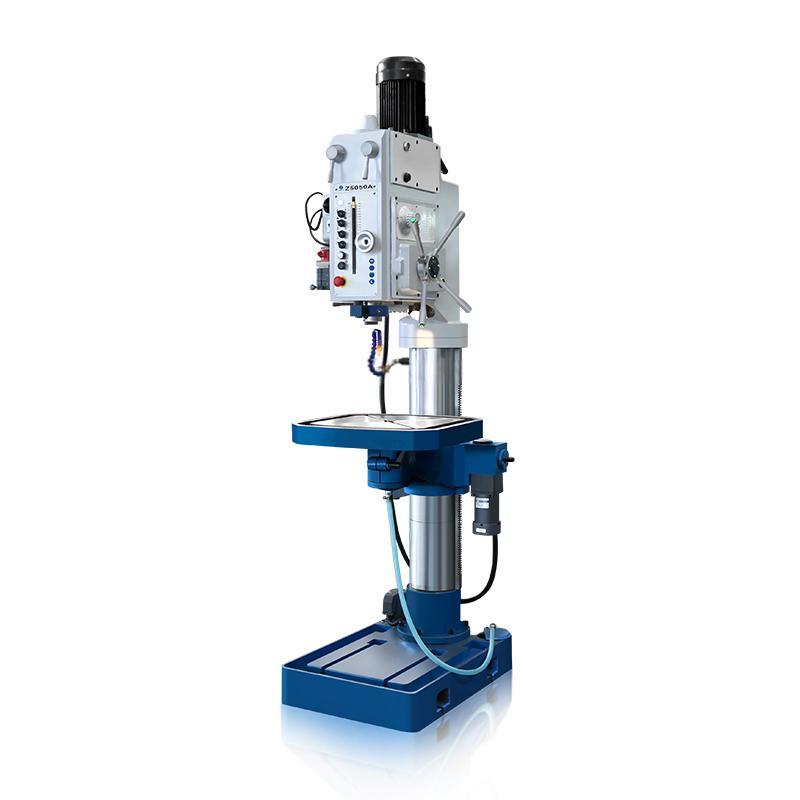

Z5050A Vertical Drilling Machine

Specifications

Units

Z5050A

Max. Drillingdiameter

mm

50

Spindle taper

MT4

Distance spindle axis to column generating line

mm

375

Spindle travel

mm

230

Spindle speeds range

r/min

54-2090

Max. spindle nose to table

mm

800

Max. spindle nose to base

mm

1300

Dimension of worktable surface

mm

600x600

Dimension of base table

mm

860x600

Width of T slot

18

Spindle feeds

mm/r

0.05,0.1,0.15,0.2,0.25,0.3

Spindlemotor power

K w

3.0/2.4

Coolant motor

w

40

G.W/N.W

kg

920/820

Overall dimension

cm

61x102x245

Packing dimension

cm

258x75x114
