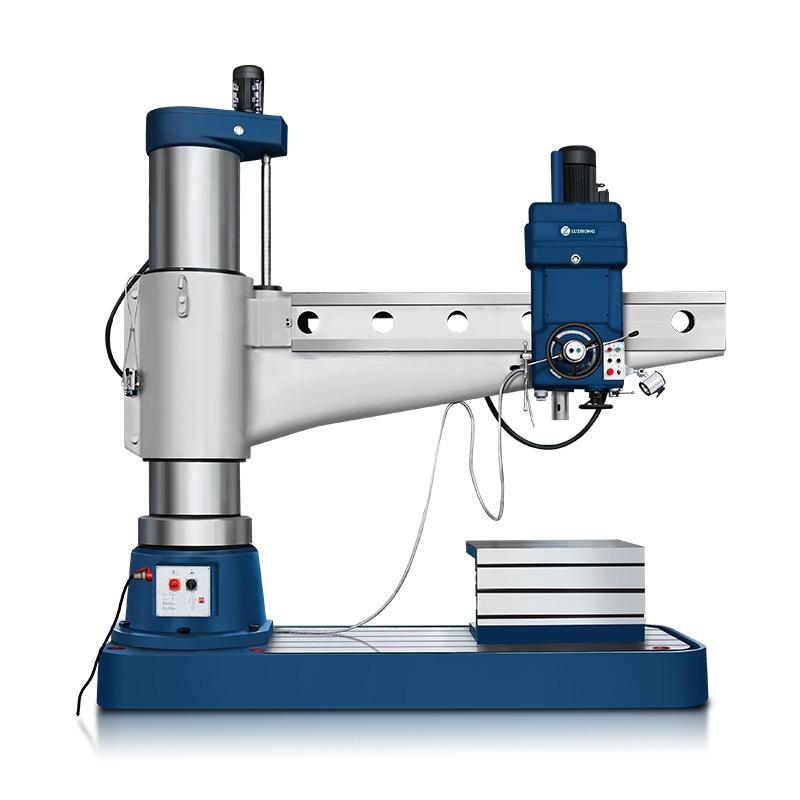

Z30125X40 Radial Drilling Machine
MACHINE description
|
specifications |
Z30125x40 |
|
Max. drilling diameter(mm) |
125 |
|
Distance between spindle axis and column surface(mm) |
600-4000 |
|
Distance form spindle nose to table surface(mm) |
750-2500 |
|
Spindle travel(mm) |
560 |
|
Spindle taper |
Metric 80 |
|
Spindle speeds range(r/min) |
6.3-800 |
|
Spindle speed step |
22 |
|
Spindle feeding range(r/min) |
0.06-3.2 |
|
Spindle feeding step |
16 |
|
Table size(mm) |
1250X800X630 |
|
Headstocklevel migration distance(mm) |
2400 |
|
Max.torque spindle(mm) |
3146 |
|
Spindle motor power(kw) |
18.5 |
|
Racking shaft heave height(mm) |
1250 |
|
N.W./G.W. |
28500 |
|
Overall dimensions(L*W*H) |
4960×2000×4780mm |
