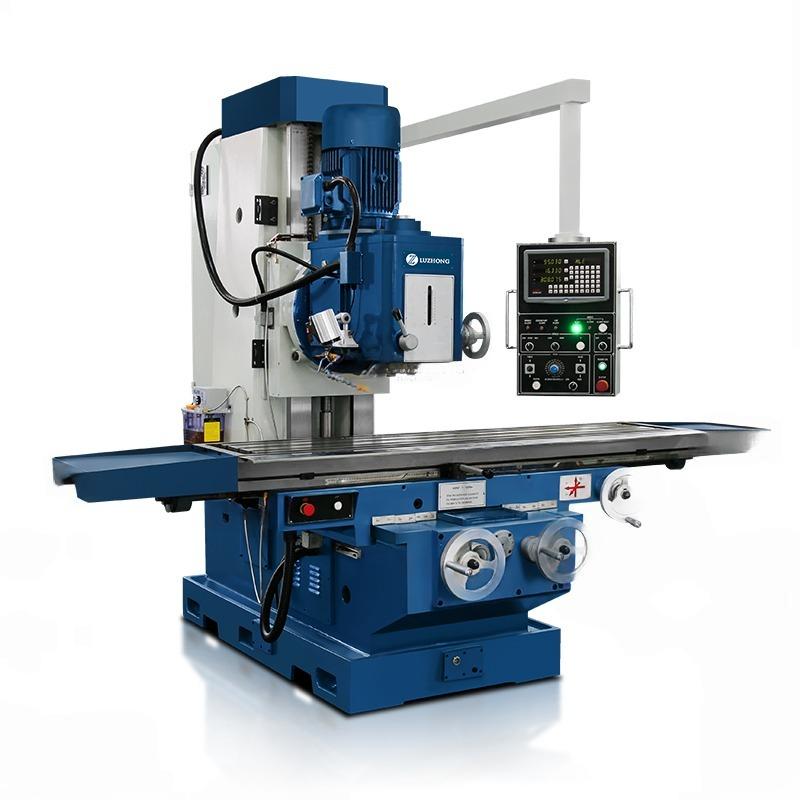

XA7150 Bed Type Milling Machine
MACHINE description
|
Specifications |
Units |
XA7150 |
|
Tablesize |
mm |
2000x400 |
|
Table stroke（X.Y） |
mm |
1500x500 |
|
Vertical travel of headstock |
mm |
100-650 |
|
T-type slot numbers / width /space |
mm |
3-18-100 |
|
Max. load working table |
KG |
2000 |
|
Feed speed |
mm/min |
20-2000 |
|
Rapid feed speed |
mm/min |
3500 |
|
Spindle speed range |
rpm |
66-1440 |
|
Spindle speed step |
steps |
12 |
|
Distance from spindle axis to column guide way |
mm |
600 |
|
Spindlemotor power |
KW |
7.5 |
|
Overall dimensions |
mm |
3000x2285x2340 |
|
Machine weight |
KG |
5000 |
