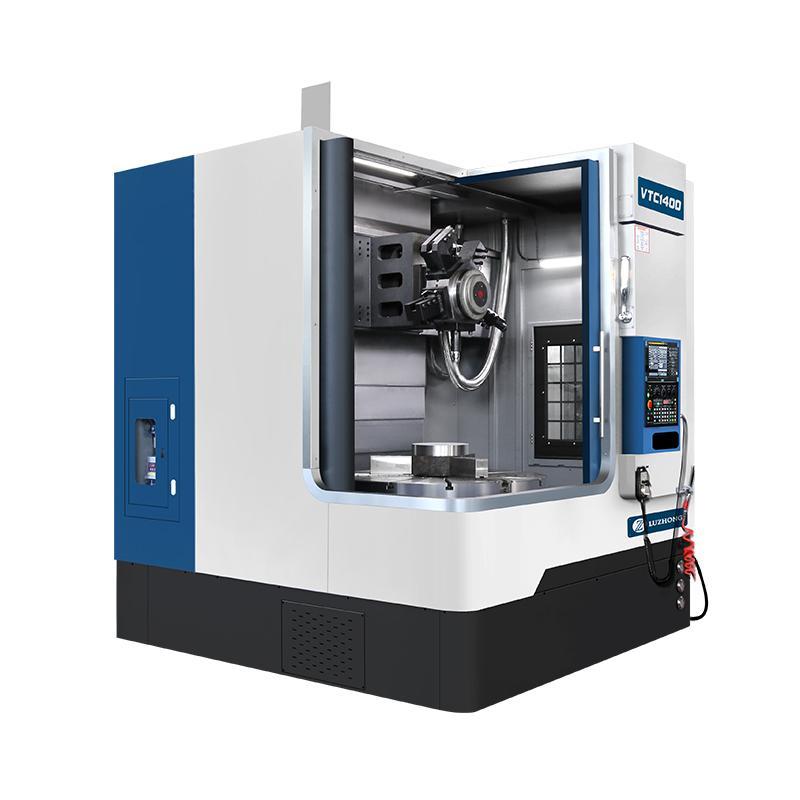

VTC1400 CNC Vertical Lathe Machine
MACHINE description
|
Specification |
units |
VTC1400 |
|
Max. Swing diameter |
mm |
1400 |
|
Max. Turning diameter |
mm |
1250 |
|
Spindle model |
A2-11 |
|
|
Diameter of spindle bearing |
mm |
180 |
|
Spindle speed range |
rpm |
20-400 Double speed gearbox |
|
Spindle output torque |
nm |
2100 |
|
Chuck diameter |
〞 |
1250mm manual 4 jaw |
|
Turret |
Ver.4 position |
|
|
Turret spec |
125 |
|
|
Tool size |
mm |
□32/φ50 |
|
Turret travel X axis |
mm |
-800 |
|
Turret travel Z axis |
mm |
800 |
|
Distance from bottom of turret to up of chuck |
mm |
150-950 |
|
X/Z linear rails |
65/55 roller |
|
|
Diameter of X/Z screw |
mm |
φ50 |
|
X axis rapid traverse |
m/min |
15 |
|
Zaxis rapid traverse |
m/min |
12 |
|
Cutting feed |
m/min |
0.1-5000 |
|
X axis motor power/torque |
Kw/nm |
3.5/22 |
|
Zaxis motor power/torque |
Kw/nm |
4.7/30 |
|
Main motor power/torque |
Kw/nm |
22/30- 210 |
|
Overall size (L*W*H) |
m |
2.8×2.95×3.25 |
|
Machine weight |
kg |
13800 |
