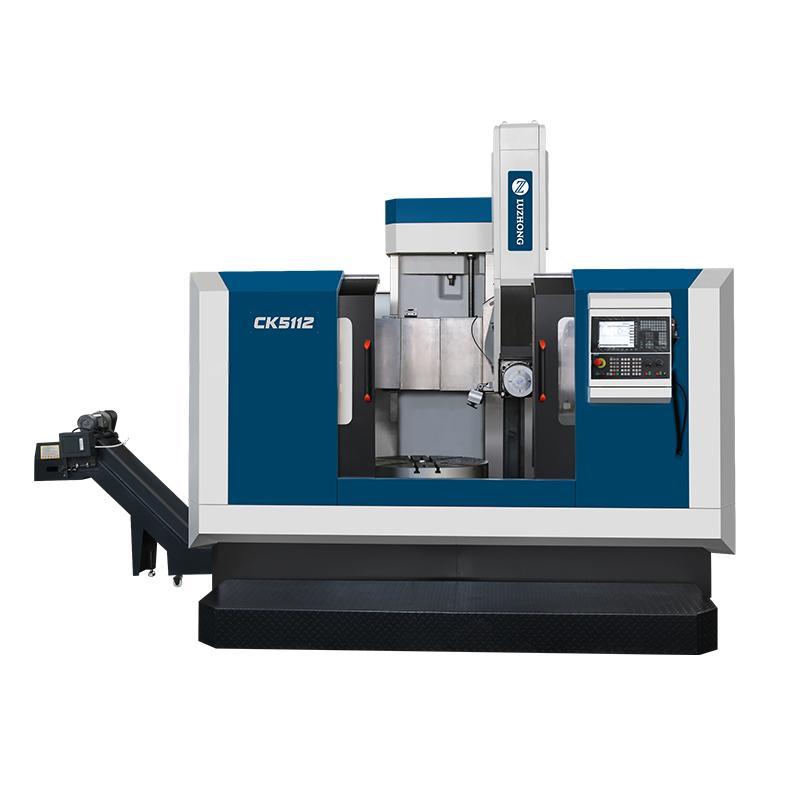

CK5112xH/3 CNC Vertical Lathe Machine
MACHINE description
|
Specification |
units |
CK5112×H/3 |
|
Max,turning diameler |
mm |
1250 |
|
Table diameter |
mm |
1000 |
|
Max. height of workpiece |
mm |
1000/1200 |
|
Max. weighi of workpiece |
t |
3 |
|
Max. torque oftable |
KN.m |
17 |
|
Spindle speed range (16steps) |
r/min |
6.3-200 |
|
Max. cutting force of rail head |
KN |
18 |
|
Range of tool feed |
mm/min |
0.1-500 |
|
Horizontal tool travel |
mm |
700 |
|
Vertrical tool travel |
mm |
650 |
|
Tool head srapid traverse |
mm/min |
2500 |
|
Elevating speed of cross rail |
mm/min |
440 |
|
Tool size |
mm |
30×40 |
|
Main motor power |
KW |
22 |
|
Overall dimension |
mm |
2360×2300×3580 |
|
Machine weight(Approx.) |
t |
9/10.5 |
