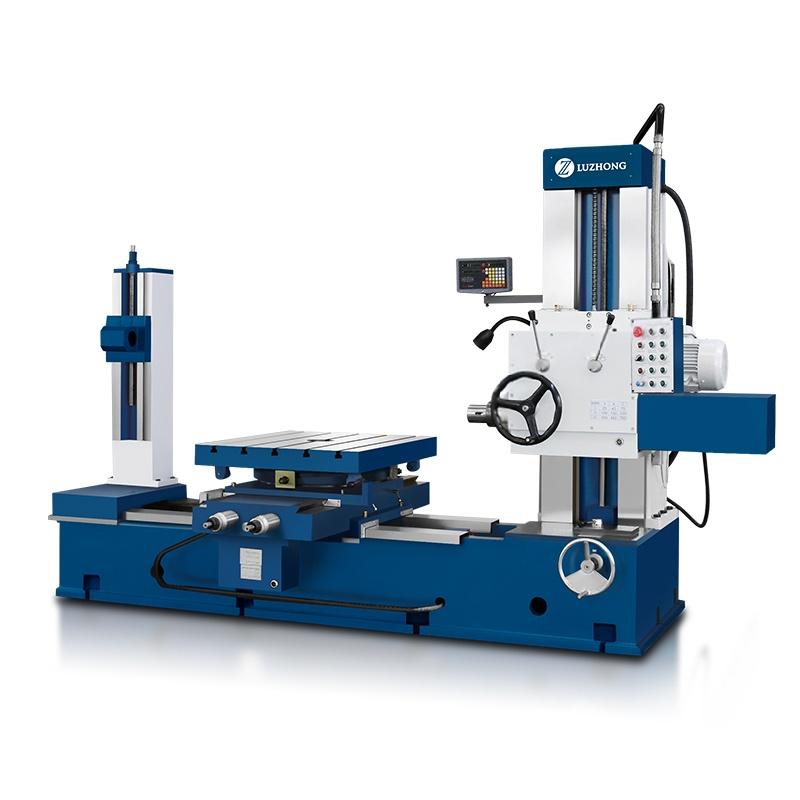

TX611 Boring Machine
from /month
MACHINE description
|
Specifications |
Units |
TX611 |
|
Spindle bore |
mm |
110 |
|
Spindle taper |
morse |
MT6 |
|
Spindle speed |
r/min |
10-1000(18steps) |
|
Table size (L*W) |
mm |
1100×900 |
|
Tablelongitudinaltravel |
mm |
1400 (Without Tailstock) |
|
Tablecrosstravel |
mm |
900 |
|
Spindle box travel |
mm |
900 |
|
Axial travel of spindle |
mm |
550 |
|
Table feed speed（steps） |
mm/min |
6-160mm/min(6steps) servo drive,Arbitrary speed setting |
|
Table rapid speed |
mm/min |
2000 |
|
Spindle box lifting speed |
mm/min |
50/400 |
|
Spindle motor power |
kw |
7.5 |
|
Weight |
kg |
9000 |
|
Overall dimensions |
mm |
3900×2250×2550 |
