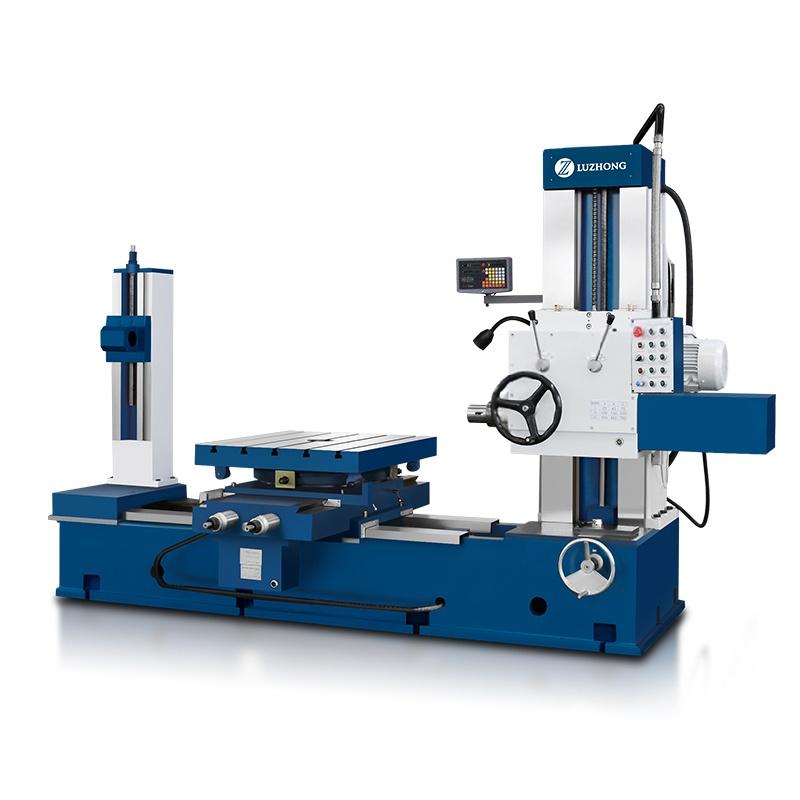

TX68 Boring Machine

Specifications	Units	TX68
Spindle bore	mm	85
Spindle taper	morse	MT5
Spindle speed	r/min	25-530(9steps)
Table size (L*W)	mm	900×800
Tablelongitudinaltravel	mm	1400 (Without Tailstock)
Tablecrosstravel	mm	700
Spindle box travel	mm	700
Axial travel of spindle	mm	300
Table feedspeed(steps)	mm/min	5-160mm/min(6steps) servo drive,Arbitrary speed setting
Table rapid speed	mm/min	2000
Spindle box lifting speed	mm/min	50/400
Spindle motor power	kw	4
Weight	kg	5000
Overall dimensions	mm	2700×1600× 2100

The appearance of beautiful and generous overall layout coordination
Fuselage, vertical column, sliding seat are all rectangular guide, good stability
Guide rail to take automatic quenching, high wear resistance
Gigital synchronous display, intuitive and accurate, can improve the efficiency of low cost

This machine is suitable for machining the parts of single piece or small batch production in the machine shop.
Drilling, boring and hinge hole can be carried out on the machine tool.
