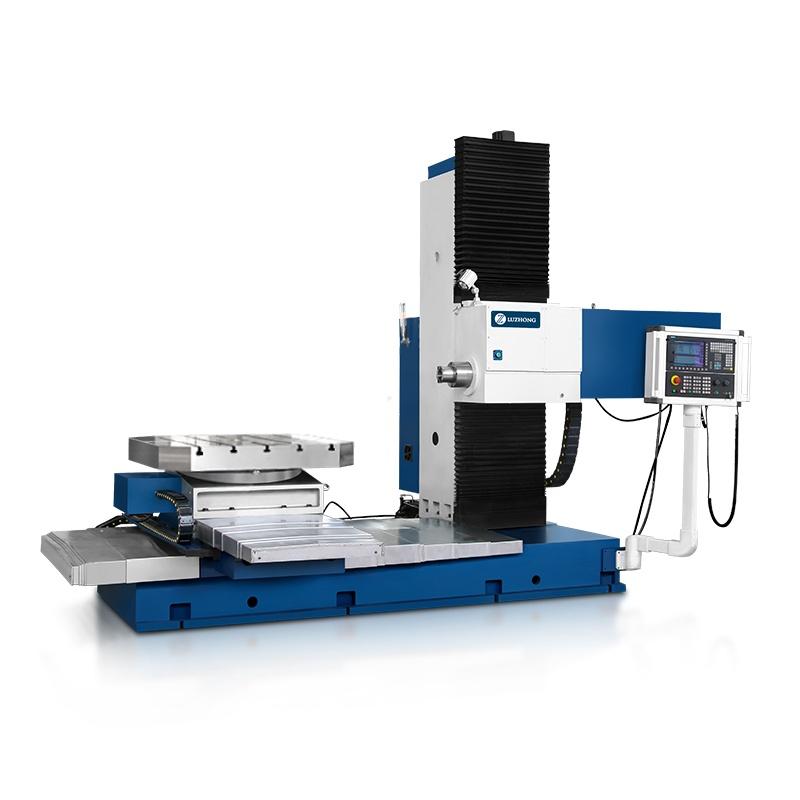

TXK611 CNC Boring Machine
from /month
MACHINE description
|
Specifications |
Units |
TXK611 |
|
Spindle bore |
mm |
155 |
|
Spindle taper |
BT |
BT50 |
|
Spindle speed |
r/min |
1-3000(servo drive) |
|
Table size (L*W) |
mm |
1100x900 Optional:1000*1000Pneumatic table or 4th axis |
|
Tablelongitudinaltravel(Z axis) |
mm |
1200 |
|
Tablecrosstravel（X axis） |
mm |
1000 |
|
Spindle box travel（Yaxis） |
mm |
900 |
|
Axial travel of spindle |
mm |
NO Optionaltelescopicspindle |
|
Table feed speed |
mm/min |
1-2500mm/min |
|
Spindle motor power |
kw |
15 |
|
Positioning accuracy |
mm |
±0.025 |
|
Repeat positioning accuracy |
mm |
±0.015 |
|
CNC control system |
- |
KND/GSK |
|
Weight |
kg |
9000 |
|
Overall dimensions |
mm |
4000×3000×3000 |
