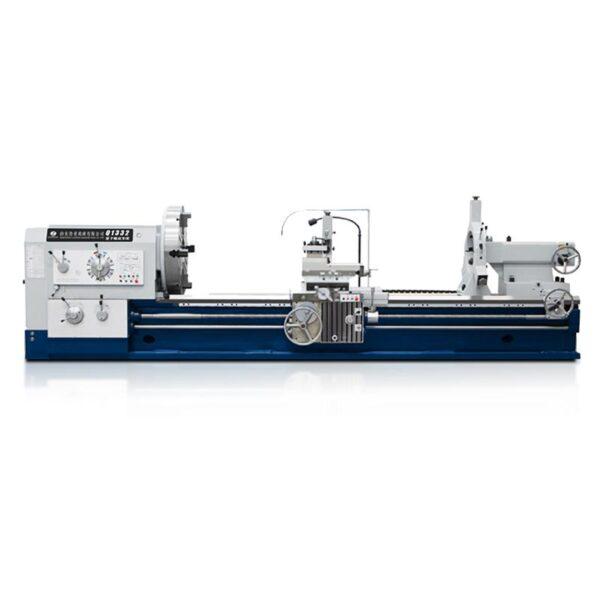

Q1332 Pipe Threading Lathe Machine
from /month
MACHINE description
|
SPECIFICATIONS |
Units |
Q1332 |
|
Swing over bed |
mm |
1000 |
|
Swing over cross slide |
mm |
610 |
|
Distance between centers |
mm |
1500/3000 |
|
Pipe threading range |
mm |
190-320 |
|
Guideway width |
mm |
755 |
|
Max. load capacity |
kg |
6000 |
|
Spindle bore |
mm |
330 |
|
Spindle speed steps |
- |
FWD. 9 steps |
|
Spindle speed range |
rpm |
7.5-280 |
|
Chuck |
mm |
φ7804-jaw electric |
|
Turret/tool post |
- |
/Manual 4 position |
|
Tool shank size |
mm |
45 x 45 |
|
X axis travel |
mm |
520 |
|
Z axis travel |
mm |
1350/2850 |
|
X axis feedsteps/range |
mm/r |
32/0.05-0.75 |
|
Z axis feedsteps/range |
mm/r |
32/0.1-1.5 |
|
X axis rapid traverse |
mm/min |
1870 |
|
Z axis rapid traverse |
mm/min |
3740 |
|
Metric threadkinds/range |
mm |
23/1-15 |
|
Inch threadkinds/range |
T.P.I |
22/28-2 |
|
Tailstock quill diameter |
mm |
φ160 |
|
Tailstock quill taper |
- |
MT6 |
|
Tailstock quill travel |
mm |
300 |
|
Main spindle motor |
kw |
22 |
|
Rapid traverse motor |
kw |
1.5 |
|
Coolant pump motor |
kw |
0.125 |
|
Weightfor 1500 |
kg |
11500 |
|
Weightfor 3000 |
kg |
13000 |
|
Dimension for 1500 |
mm |
4900x2100x1650 |
|
Dimension for 3000 |
mm |
6400x2100x1650 |
