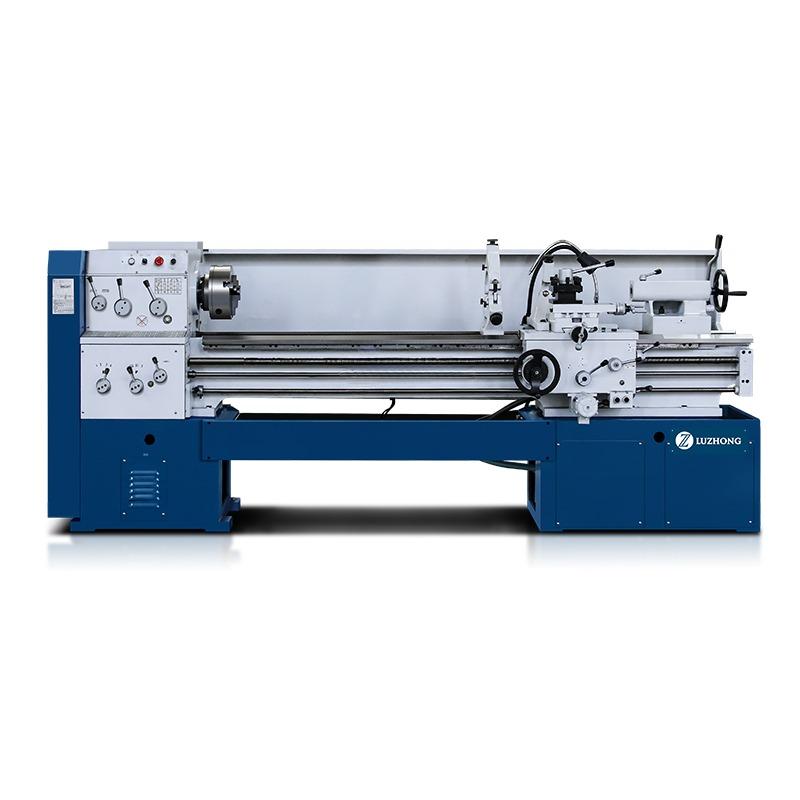

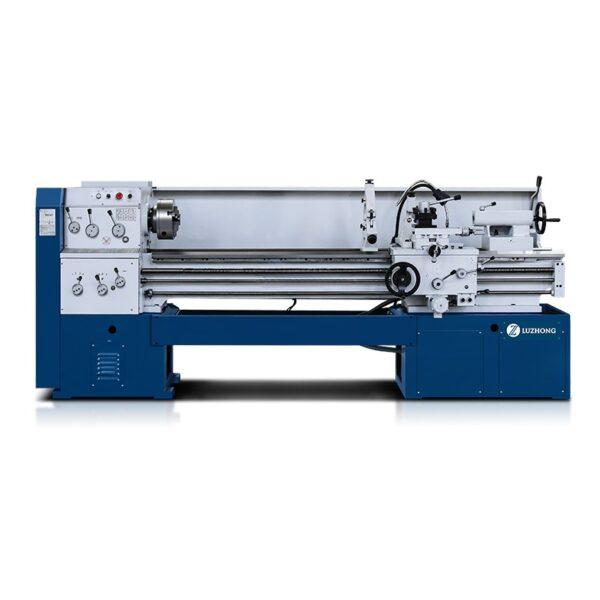

C6170 C6270 Lathe Machine
MACHINE description
|
SPECIFICATIONS |
Units |
C6170 |
C6270 |
|
Swing over bed |
mm |
700 |
700 |
|
Swing over cross slide |
mm |
500 |
500 |
|
Swingovergap |
mm |
- |
860 |
|
Distance between centers |
mm |
750/1000/1500/2000/3000 |
750/1000/1500/2000/3000 |
|
Spindle bore |
mm |
52(Optional:80) |
52(Optional:80) |
|
Spindle bore taper |
- |
MT6(Optional:Metric 1:20) |
MT6(Optional:Metric 1:20) |
|
Spindle speed steps |
- |
9 |
9 |
|
Spindle speed range |
rpm |
40-1400 |
40-1400 |
|
Cross slide travel |
mm |
350 |
350 |
|
Top tool post travel |
mm |
95 |
95 |
|
Tool size |
mm |
20 x 20 |
20 x 20 |
|
Longitudinal feeds range |
mm/r |
0.0832-4.6569 |
0.0832-4.6569 |
|
Cross feeds range |
mm/r |
0.048-2.688 |
0.048-2.688 |
|
Kindsof metric threads |
kinds |
19 |
19 |
|
Rangeof metric threads |
mm |
0.25-14 |
0.25-14 |
|
Kindsof inch threads |
kinds |
28 |
28 |
|
Range of inch threads |
T.P.I. |
2-40 |
2-40 |
|
Kindsofthreads module |
kinds |
17 |
17 |
|
Range ofthreads module |
MP |
0.25-3.5 |
0.25-3.5 |
|
Tailstock quill diameter |
mm |
65 |
65 |
|
Tailstock quill taper |
- |
MT5 |
MT5 |
|
Tailstock quill travel |
mm |
130 |
130 |
|
Main motor power |
kw |
5.5 |
5.5 |
|
Coolant pump motor |
kw |
0.09 |
0.09 |
|
Weightfor 750 |
kg |
1500 |
1500 |
|
Weightfor 1000 |
kg |
1600 |
1600 |
|
Weightfor 1500 |
kg |
1800 |
1800 |
|
Weightfor 2000 |
kg |
2000 |
2000 |
|
Weightfor 3000 |
kg |
2200 |
2200 |
|
Dimension for 750 |
mm |
2200x1140x2000 |
2200x1140x2000 |
|
Dimension for 1000 |
mm |
2400x1140x2000 |
2400x1140x2000 |
|
Dimension for 1500 |
mm |
2900x1140x2000 |
2900x1140x2000 |
|
Dimension for 2000 |
mm |
3400x1140x2000 |
3400x1140x2000 |
|
Dimension for 3000 |
mm |
4400x1140x2090 |
4400x1140x2090 |
